Ankle Catcher - Remove and Replace: Install

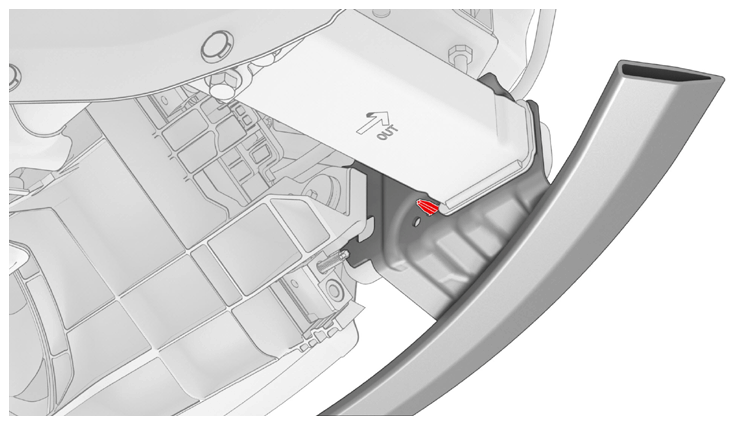

  1. Position the ankle carrier onto the front end carrier locating posts, and then slide the ankle catcher into place.
    G14738733Courtesy of TESLA, INC.
  2. Hand-tighten the bolts that attach the front end carrier to the crash cans.
    G14738734Courtesy of TESLA, INC.

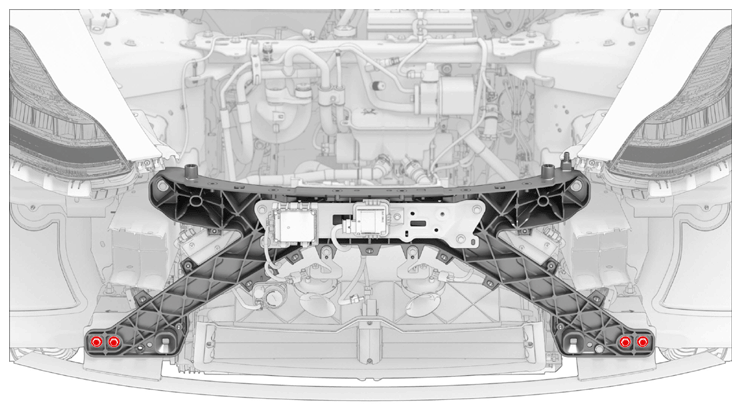

  3. Torque the bolts that attach the front end carrier to the crash cans.

    16 N.m (11.8 ft-lbs)

    G14738735Courtesy of TESLA, INC.

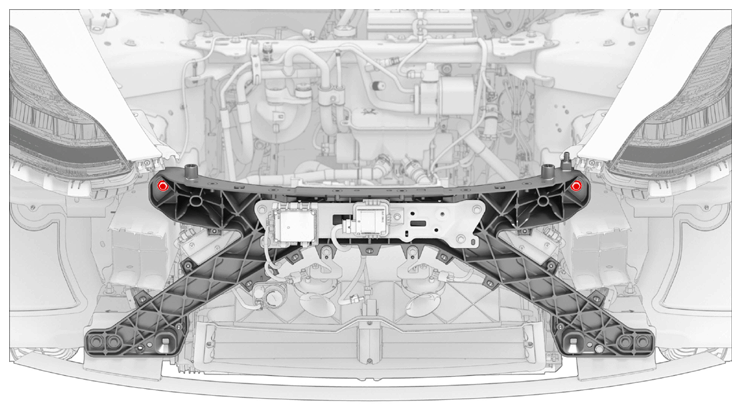

  4. Tighten the bolts that attach the upper section of the front end carrier to the body.

    16 N.m (11.8 ft-lbs)

    G14738736Courtesy of TESLA, INC.

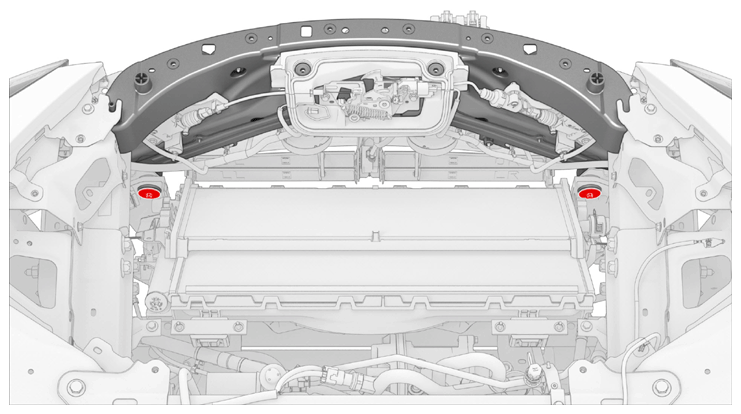

  5. Install the bolts that attach the bottom of the cooling fan module to the ankle catcher.

    10 N.m (7.4 ft-lbs)

    NOTE: Lift the condenser fan module up to ease installation of the bolts.
    G14738737Courtesy of TESLA, INC.
  6. Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
