Panel - Cowl Screen - Remove and Replace: Remove

  1. Open the driver's door and fully lower the window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  4. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  5. Remove the underhood storage unit carpet. See CARPET - UNDERHOOD STORAGE (REMOVE AND INSTALL) .
  6. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  7. Remove the LH and RH wiper arms. See WIPER ARMS (REMOVE AND REPLACE) .
  8. Remove the LH and RH shock tower covers. See COVER - SHOCK TOWER - LH (REMOVE AND REPLACE) .

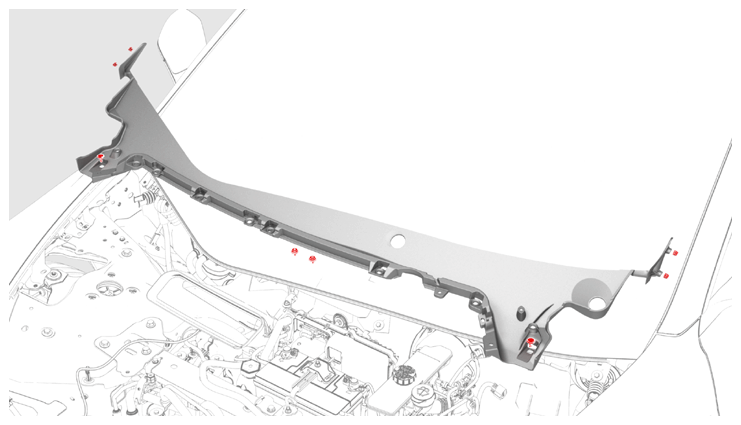

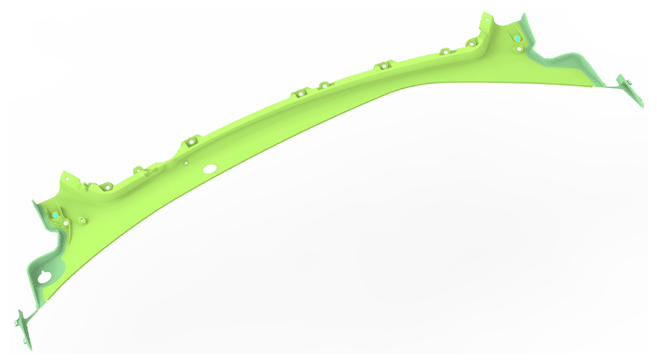

  9. Release the clips that attach the cowl screen panel to the vehicle, and then remove the cowl screen panel from the vehicle.
    G14739966Courtesy of TESLA, INC.
    G14739967Courtesy of TESLA, INC.
