Reservoir - Windshield Washer - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  3. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  4. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  5. Remove the LH and RH wiper arms. See WIPER ARMS (REMOVE AND REPLACE) .
  6. Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .
  7. LHD models only:  remove the wiper motor. See WIPER MODULE (REMOVE AND REPLACE) .

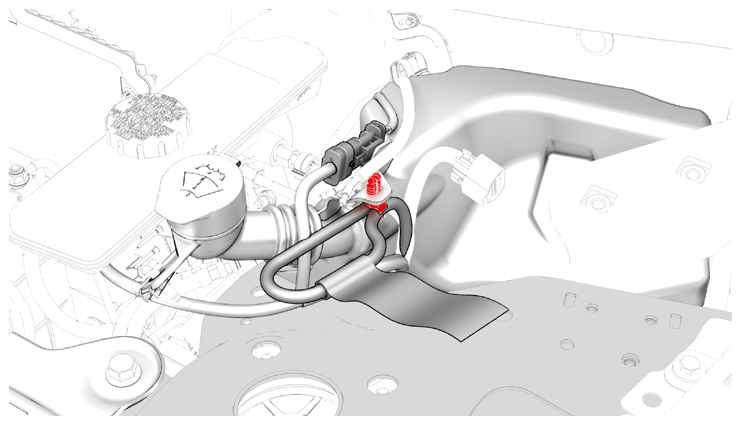

  8. Release the clip that attaches the electrical harness to the windshield washer reservoir.
    G14744376Courtesy of TESLA, INC.

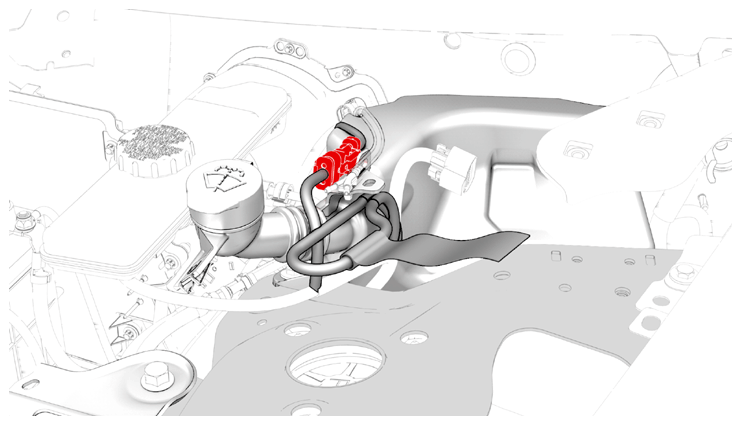

  9. Disconnect the electrical harness from the windshield washer reservoir connector.
    G14744377Courtesy of TESLA, INC.
  10. Remove the LH front wheel. See WHEEL (REMOVE AND INSTALL) .
  11. Remove the LH front wheel arch liner. See WHEEL ARCH LINER - FRONT - LH (REMOVE AND REPLACE) .

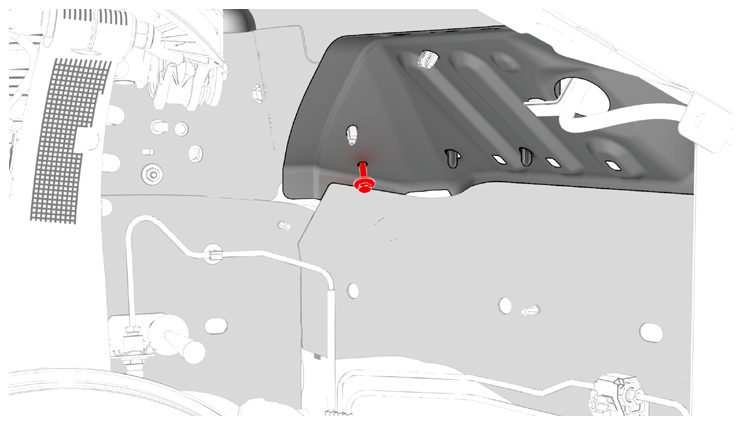

  12. Remove the lower bolt that attaches the windshield washer reservoir to the body.
    G14744378Courtesy of TESLA, INC.
  13. Lower the vehicle until the tires just touch the ground.

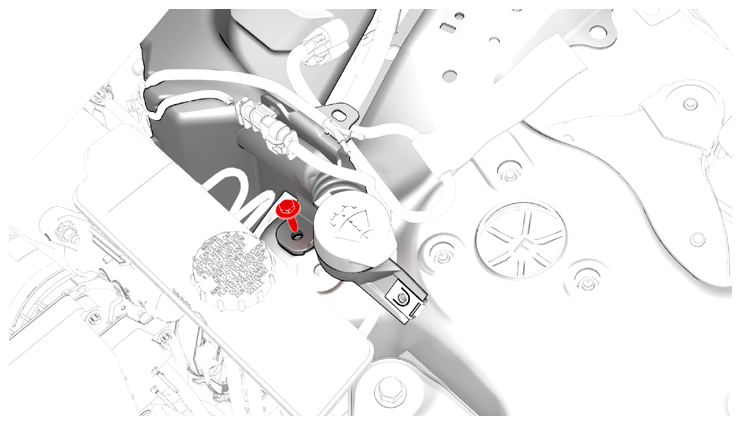

  14. Remove the upper bolt that attaches the windshield washer reservoir to the body.
    G14744379Courtesy of TESLA, INC.
  15. Remove the windshield washer reservoir from the vehicle, and then recover any fluid from the reservoir.

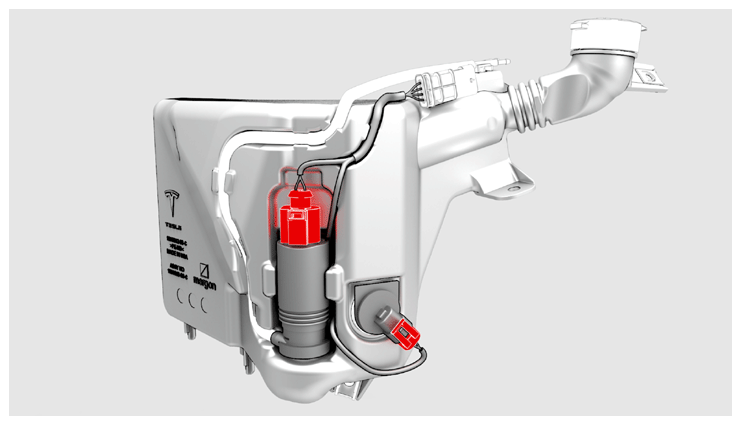

  16. Disconnect the electrical harness from the windshield washer pump connector and level sensor connector.
    G14744380Courtesy of TESLA, INC.

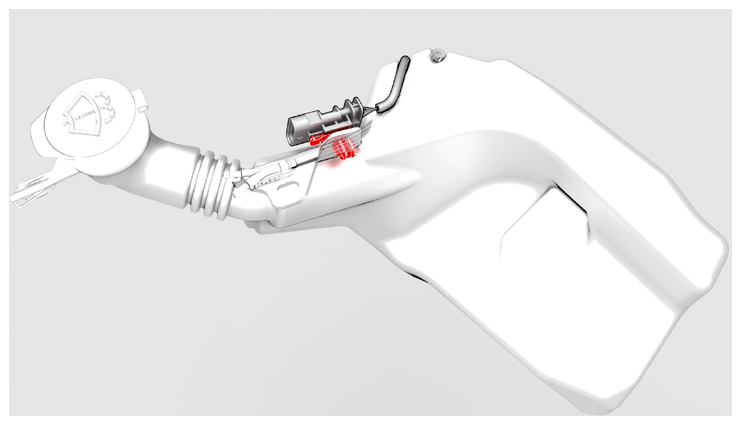

  17. Release the clip that attaches the electrical harness to the reservoir, and then remove the electrical harness from the windshield washer reservoir.
    G14744381Courtesy of TESLA, INC.

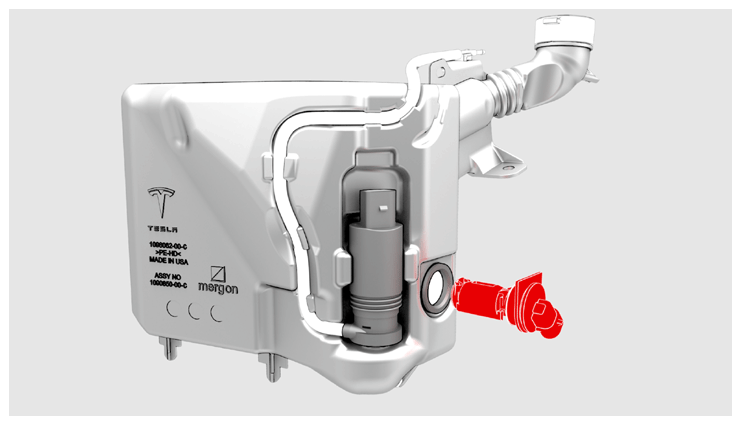

  18. Remove the level sensor from the grommet at the side of the reservoir.
    G14744382Courtesy of TESLA, INC.

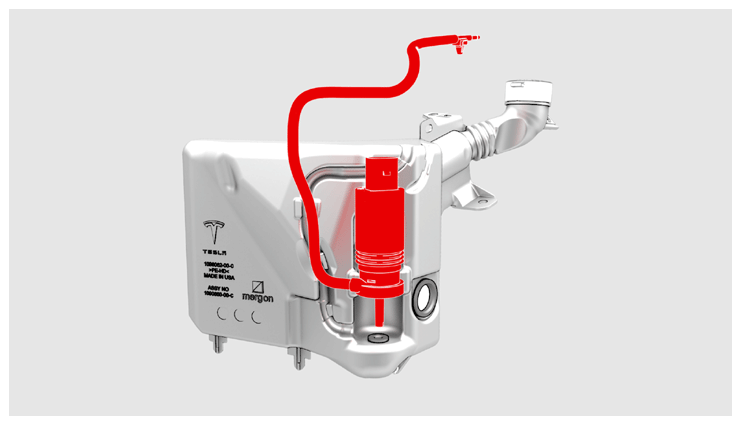

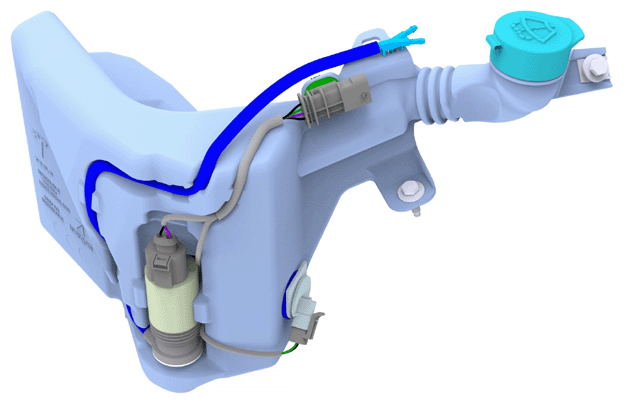

  19. Remove the washer hose from the windshield washer reservoir, and then remove the windshield washer pump from the grommet in the reservoir.
    G14744383Courtesy of TESLA, INC.
    G14744384Courtesy of TESLA, INC.
