USB Hub - Center Console - Front (1st Generation) - Remove and Replace: Remove
- Remove the center console. See CENTER CONSOLE (REMOVE AND INSTALL)
.NOTE: It is not necessary to remove the center console assembly from the vehicle; maneuver the assembly away from the instrument panel to access the USB hub.

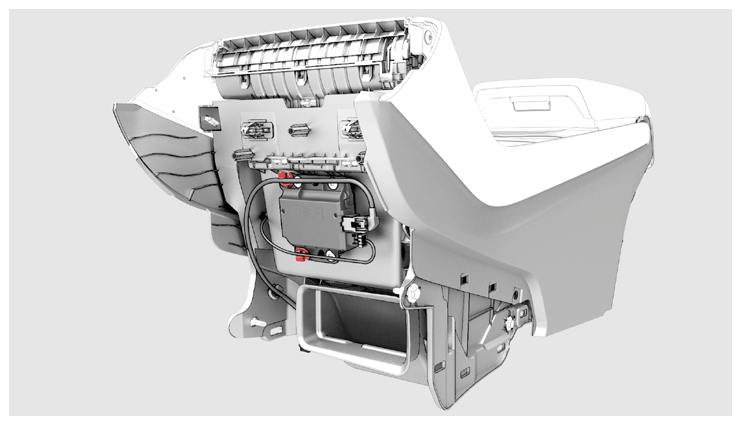

- Disconnect the electrical wiring harness connector from the USB hub.
- Release the clips that attach the electrical harness to the USB hub.

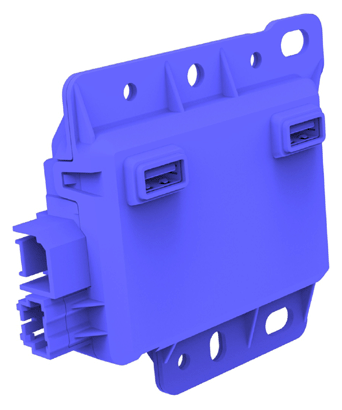

- Remove the bolts that attach the USB hub to the center console, and then remove the USB hub from the center console.
1.1 N.m (.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 4 in extension
