Sensor - Parking Distance - Inner - Front - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  3. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  4. Release the tabs (x2) that attach the front parking distance sensor to the front fascia, and then remove the sensor from the fascia.
    G14744130Courtesy of TESLA, INC.

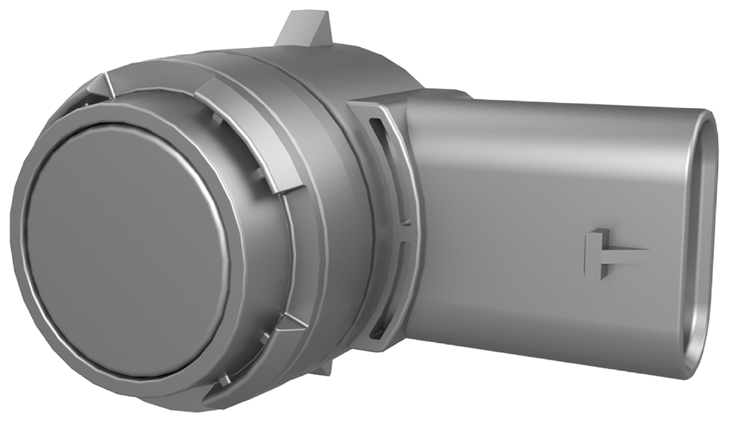

    G14744131Courtesy of TESLA, INC.
