Trim - Seat Back - Driver Seat - Remove and Replace: Install

  1. Install the driver seat seat back trim to the seat back foam.
  2. Install the clips (x2) that attach the driver seat seat back trim to the seat back foam.
    NOTE: Make sure the clips are secured.
    G00622641Courtesy of TESLA, INC.

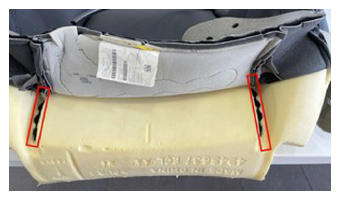

  3. Install the strap that attaches the driver seat seat back trim to the seat back foam.
    NOTE: Make sure the strap is secured.
    G14740517Courtesy of TESLA, INC.

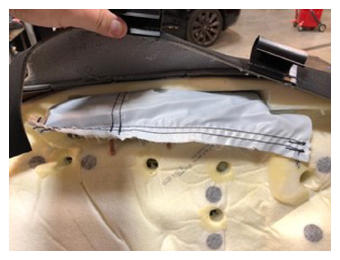

  4. Install the driver side airbag into the airbag chute, and then insert the airbag chute with the airbag inside through the slot in the seat back foam.
    CAUTION: Make sure that the driver side airbag mounting studs extend out of the holes of the chute.
    CAUTION: Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    NOTE: Refer to the following video for proper care when installing the driver side airbag into the airbag chute, and when installing the chute through the seat foam. See Side Airbag Installation Video.
    multimedia:A supplement to the article is available.
    G14740515Courtesy of TESLA, INC.

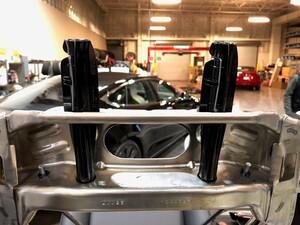

  5. Install the driver seat seat back and foam onto the seat back frame.
    NOTE: Start by sliding the foam trim straight onto the seat back frame. Ensure the posts for the headrests engage the seat back foam. Ensure the heater harness and lower trim that engages the frame are pushed through to the back side of the frame.
    G00622643Courtesy of TESLA, INC.
    G00622644Courtesy of TESLA, INC.
    G00622645Courtesy of TESLA, INC.

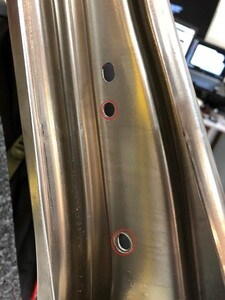

  6. Install the driver seat side airbag studs into the seat back frame. foam.
    NOTE: The studs should line up with the two round holes. The elongated hole is not used for this part.
    G00622646Courtesy of TESLA, INC.

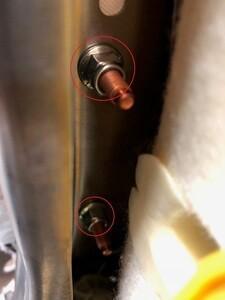

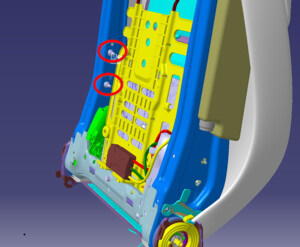

  7. Install the nuts (x2) that attach the driver seat airbag to the seat back frame.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Ratchet/torque wrench
    G00622647Courtesy of TESLA, INC.
    G00622648Courtesy of TESLA, INC.

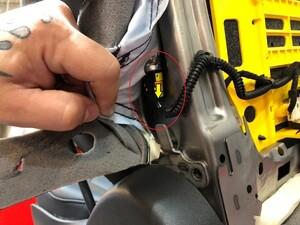

  8. Connect driver seat side airbag electrical connector.
    G00622649Courtesy of TESLA, INC.

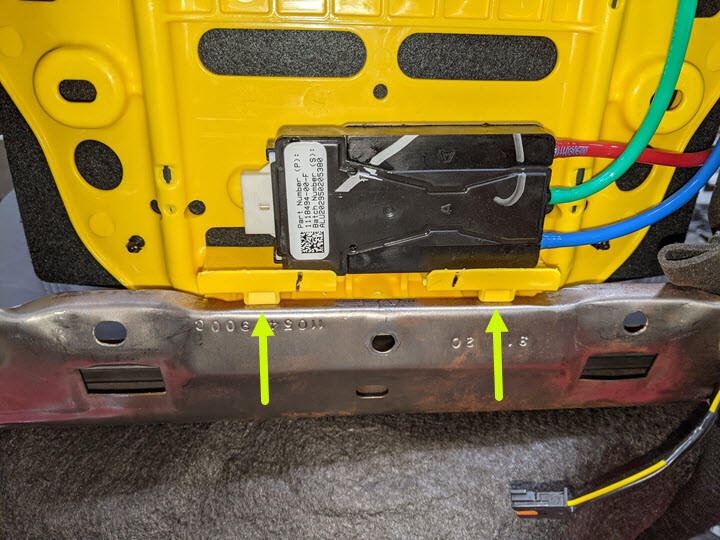

  9. Install the tabs(x2) that attach the bottom of the lumbar support to the seat back frame.
    G00622650Courtesy of TESLA, INC.

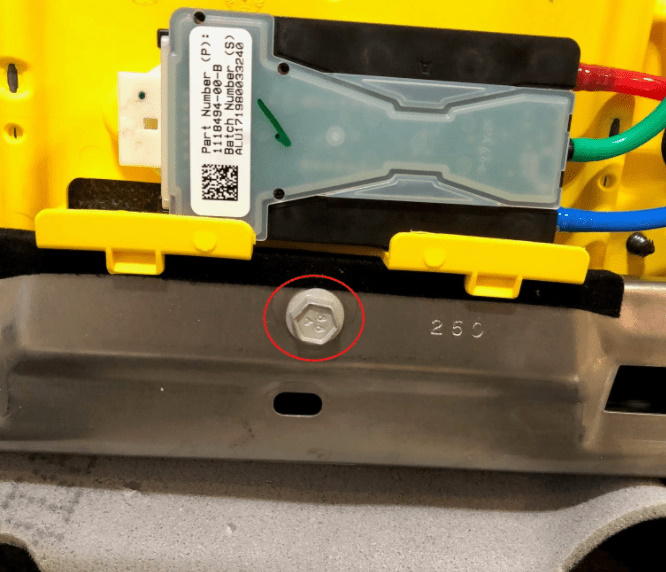

  10. Install the bolt that attaches the bottom of the lumbar support to the seat back frame.

    5 N.m (3.7 ft-lbs)

    NOTE: The bolt is located below the lumbar ECU.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench
    G00622731Courtesy of TESLA, INC.

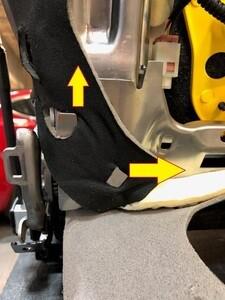

  11. Install the upper flap that covers the outboard corner of the driver seat seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00622732Courtesy of TESLA, INC.

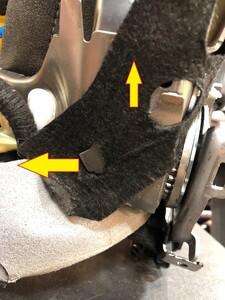

  12. Install the upper flap that covers the inboard corner of the driver seat seat back frame.
    NOTE: Pull the lower section of trim away from the retaining tab to release it, and then pull the trim straight up off of the upper retaining tab.
    G00622733Courtesy of TESLA, INC.

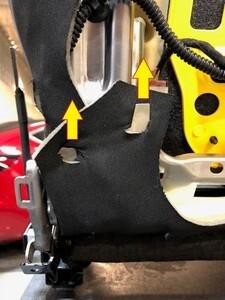

  13. Install the lower flap that covers the outboard corner of the driver seat seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00622734Courtesy of TESLA, INC.

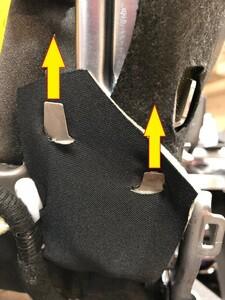

  14. Install the lower flap covering the inboard corner of the driver seat seat back frame.
    NOTE: Pull the flap over the metal tangs to secure it.
    G00622735Courtesy of TESLA, INC.

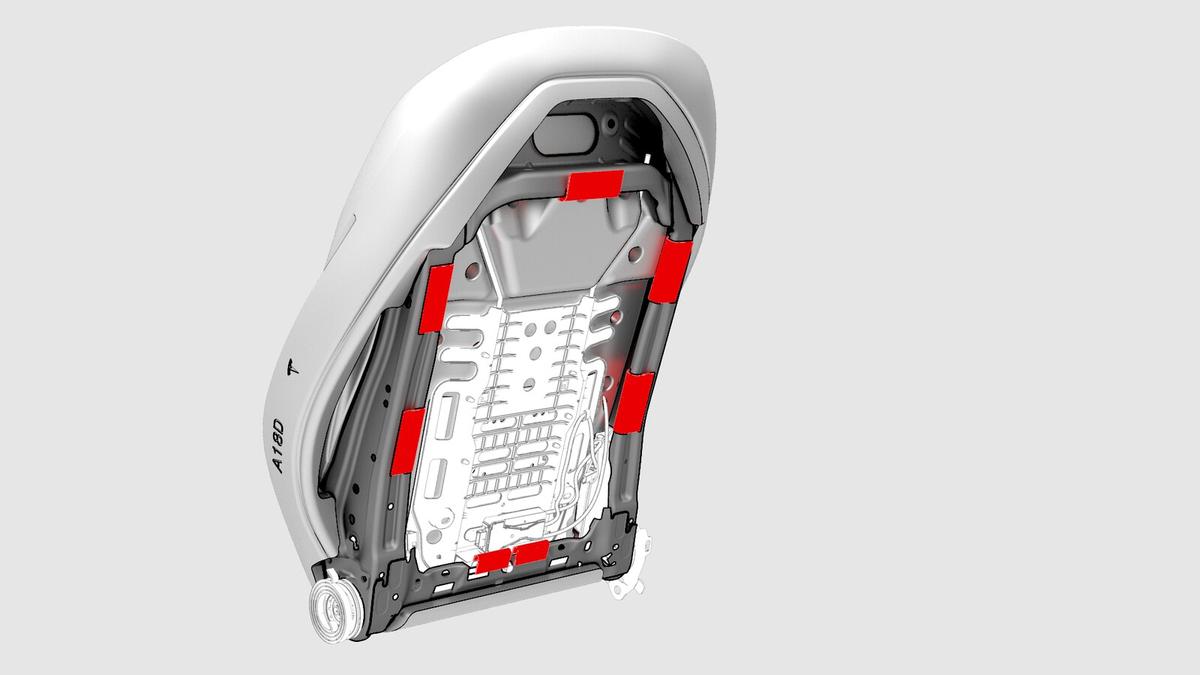

  15. Install the driver seat back trim retainers(x7) to the driver seat back frame.
    G00622736Courtesy of TESLA, INC.
  16. Install the seat back shell onto the seat. See SHELL - SEAT BACK - DRIVER (REMOVE AND REPLACE) .
  17. Install the driver headrest trim. See TRIM - HEADREST - DRIVER (REMOVE AND REPLACE)
  18. Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
  19. If servicing the front passenger seat in a North American vehicle:
    1. Remove all objects from the front passenger seat before beginning calibration.
    2. On the vehicle touchscreen, touch Controls (Vehicle Icon) > Software and check the vehicle firmware version. If the vehicle firmware is 2023.2.11 or newer, perform a software reinstall. See SOFTWARE REINSTALL - TOUCHSCREEN . If the vehicle firmware is not 2023.2.11 or newer, update the vehicle firmware. See SOFTWARE UPDATE .
    3. Locally connect a laptop with Toolbox 3 to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT
    4. Unlock the vehicle gateway. See GATEWAY (UNLOCK)
    5. In Toolbox, click on the Actions  tab, and then search for "OCS".
    6. Run  the PROC_OCS1P_SELF-CALIBRATION routine.
    7. Click on the Actions  tab, and then search for "Seat calibration".
    8. Run  the PROC_VCRIGHT_SEAT-TEST-CALIBRATE routine.
    9. Disconnect Toolbox and remove the laptop from the vehicle.
