Latch - Seat Back - 2nd Row - LH - Remove and Replace: Remove

  1. Remove the 2nd row center seatbelt assembly. See SEATBELT - 2ND ROW - CENTER (REMOVE AND REPLACE) .
  2. Release the cable clip that attaches the latch bracket to the seat back.
    G14740240Courtesy of TESLA, INC.
  3. Release the clip that attaches the bracket stud to the seat back.
    G14740241Courtesy of TESLA, INC.
  4. Remove the bolts that attach the 2nd row LH seat back latch to the seat back, and then remove the latch from the seat back.

    40 N.m (29.5 ft-lbs)

    G14740242Courtesy of TESLA, INC.

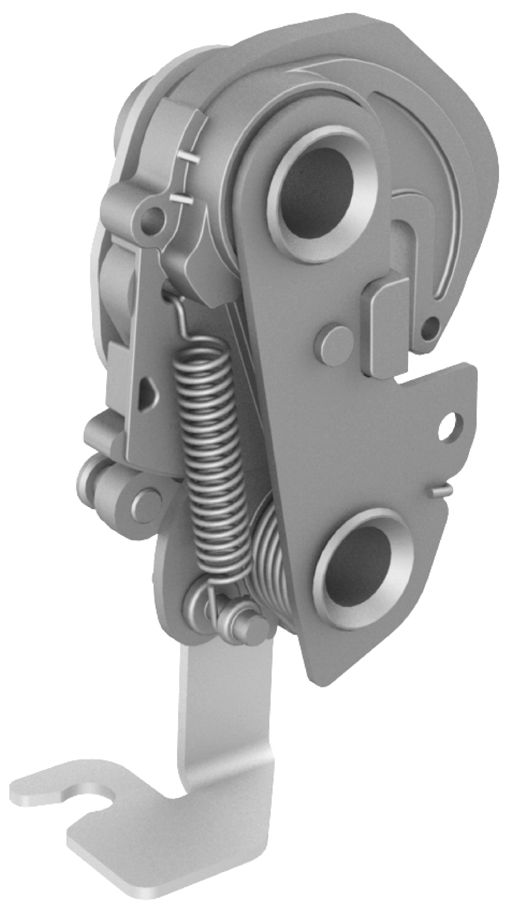

    G14740243Courtesy of TESLA, INC.
