ECU -- Trailer Hitch - Remove and Replace: Remove

  1. Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .

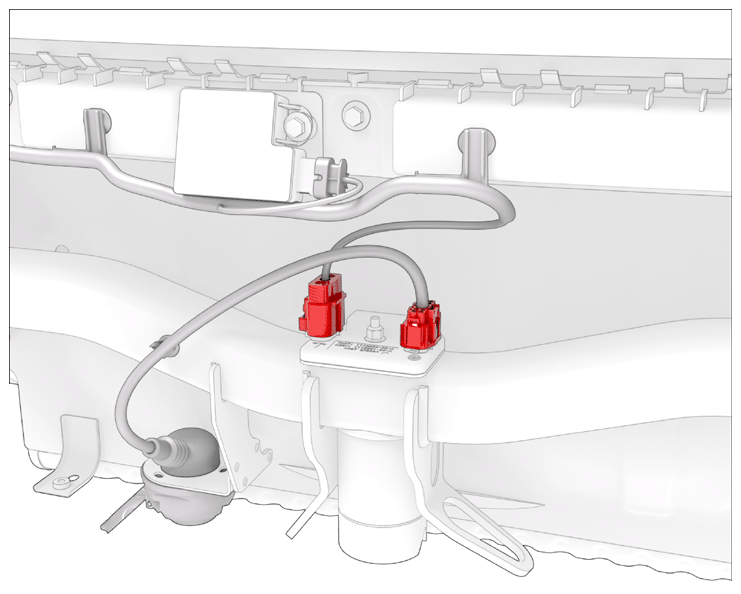

  2. Disconnect the trailer hitch jumper harness and body harness electrical connectors from the trailer hitch ECU.
    G14740005Courtesy of TESLA, INC.

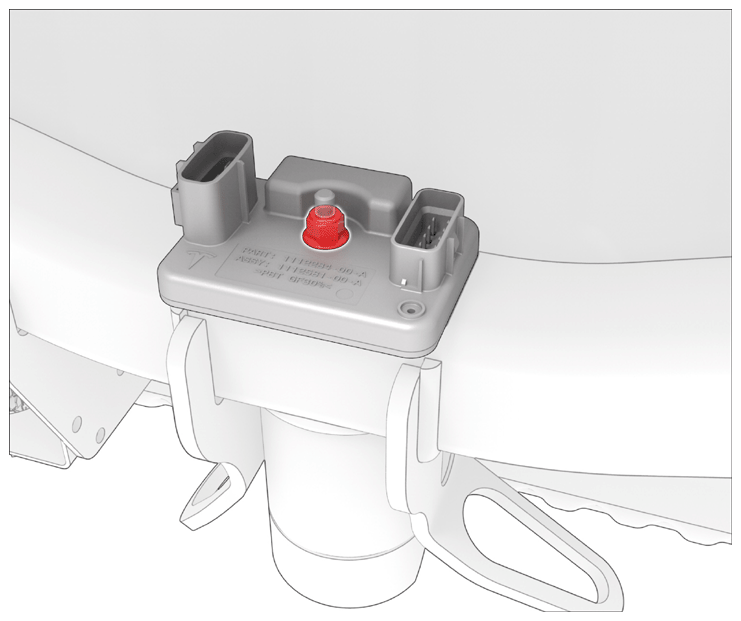

  3. Using a 10 mm deep socket, remove the nut that attaches the trailer hitch ECU to the stud on the trailer hitch assembly.
    G14740006Courtesy of TESLA, INC.
  4. Remove the trailer hitch ECU from the trailer hitch assembly.
