Cover - Hood Latch - Remove and Replace: Remove

  1. Open the hood.
  2. Release the clips that attach the hood latch cover to the body.

    Tip: Grab the cover from the bottom, and then pull it upward to release the clips.

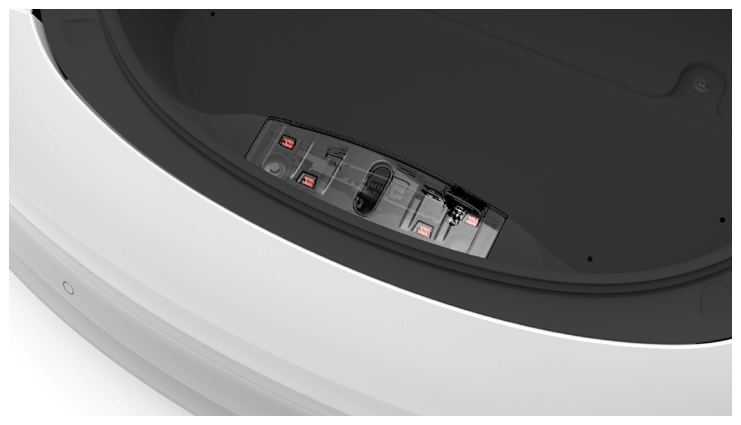

    G14741082Courtesy of TESLA, INC.
  3. Disconnect the electrical harness from the child safety switch connector, and then remove the cover from the vehicle.

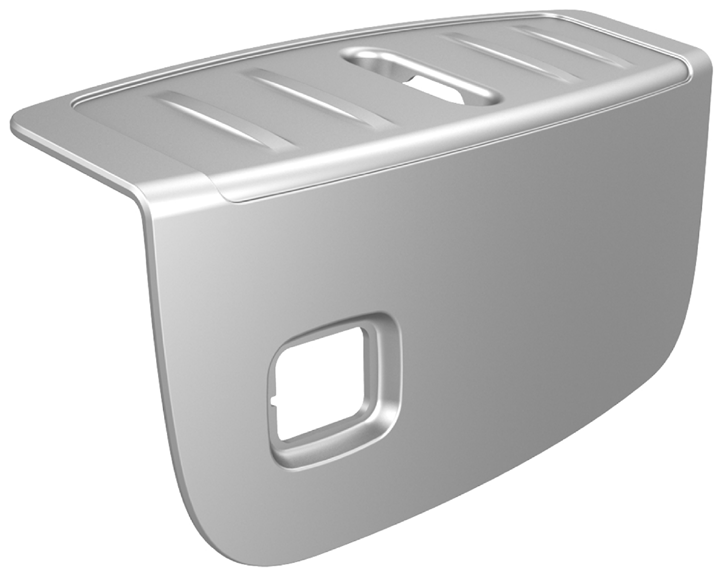

    G14741083Courtesy of TESLA, INC.
