Trim - Side - Trunk - LH - Remove and Replace: Install

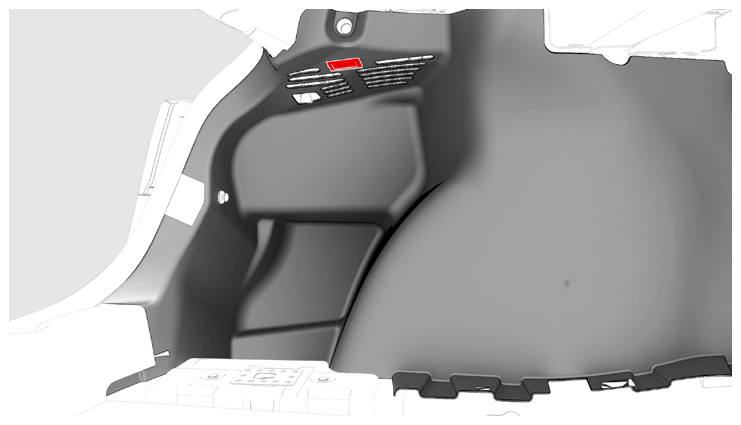

  1. Connect the electrical connector to the puddle lamp.
    G14741097Courtesy of TESLA, INC.

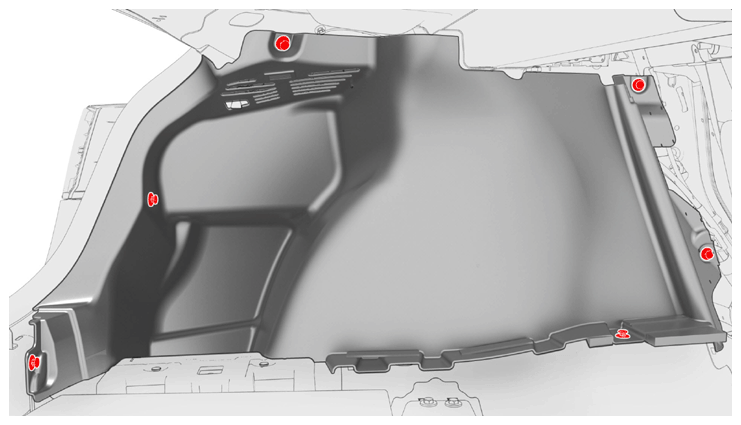

  2. Install the push clips that attach the LH trunk side trim to the vehicle.
    G14741098Courtesy of TESLA, INC.
  3. Install the trunk sill trim panel. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  4. Install the trunk floor trim. See TRIM - FLOOR - TRUNK (REMOVE AND REPLACE) .
  5. Install the trunk garnish. See GARNISH - TRUNK (REMOVE AND REPLACE) .

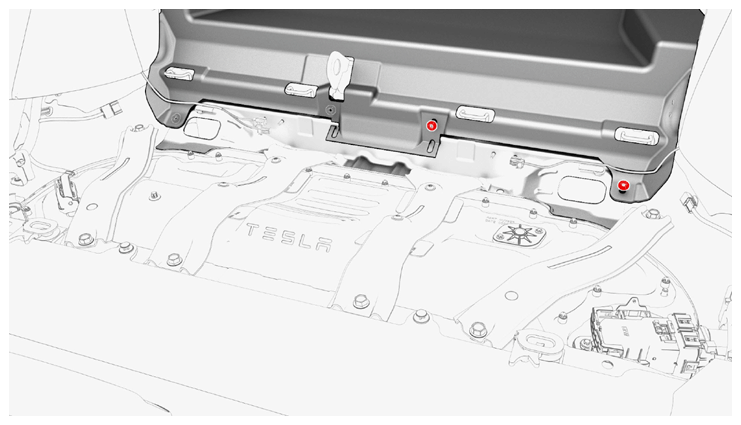

  6. Install the LH side of the trunk carpet on the ISOFIX bars and if necessary, install the carpet clips on the body studs.
    G14741099Courtesy of TESLA, INC.
  7. If necessary, install the LH 2nd row seat back. See SEAT BACK - 2ND ROW - LH (REMOVE AND REPLACE) .
  8. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
