Valance - Front Fascia - Remove and Replace: Install

Installation procedure is the reverse of removal.

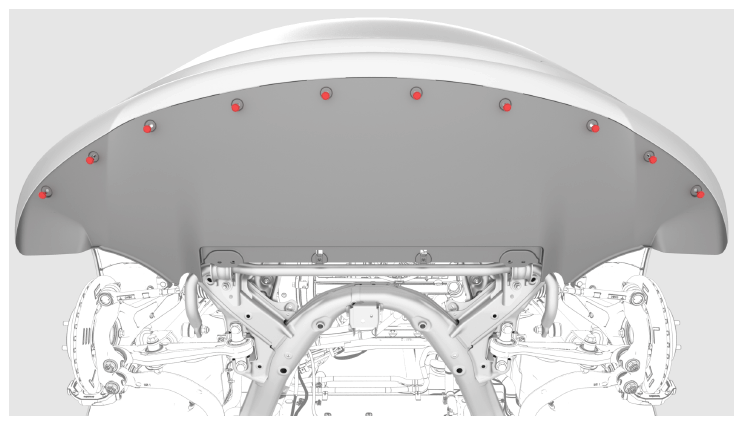

1. Install the valance to the front fascia, and install the push clips (x10) that attach the valance to the fascia.
   NOTE: Fasten the clips at the far left and far right first and work inward.

   Courtesy of TESLA, INC.

2. Install the nuts (x2) at the LH and RH corners of the valance.

   3 N.m (2.2 ft-lbs)

   NOTE: The nuts are accessed from behind the front of the wheel liners.

   Courtesy of TESLA, INC.

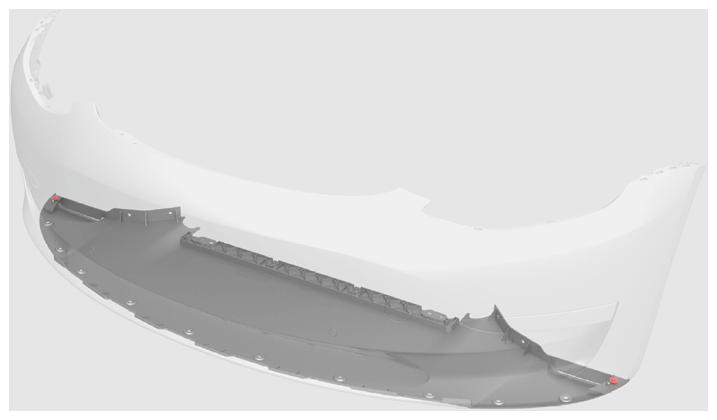

3. Install the push clips (x4) that attach the LH and RH sides of the valance to the wheel liners.
   NOTE: Install the outer clips if removed earlier.

   Courtesy of TESLA, INC.

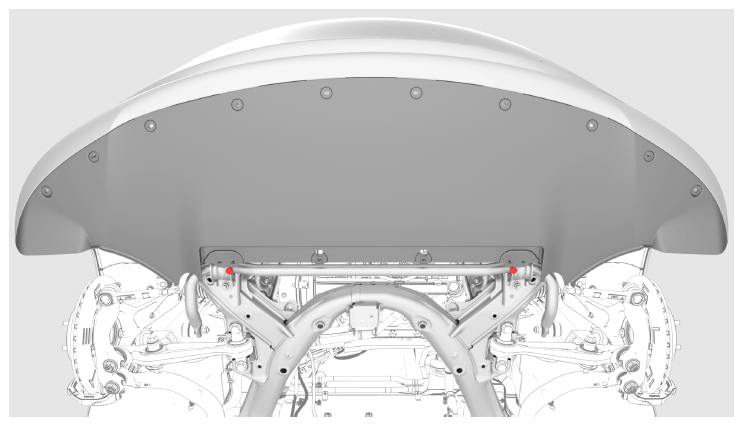

4. Fasten the clips (x2) that attach the valance to the stabilizer bar brackets.

   Courtesy of TESLA, INC.

5. Install the front aero shield panel. See PANEL - AERO SHIELD - FRONT (REMOVE AND REPLACE) .
