Fascia - Rear - Remove and Install: Install

With the help of an assistant, install the rear fascia onto the vehicle.
CAUTION: Carefully install the rear fascia to the body so that the corner fastener clips do not damage the rear quarter panels.

Courtesy of TESLA, INC.
Connect the rear fascia electrical harness.

Courtesy of TESLA, INC.
Install the bolts (x5) that attach the rear diffuser to the body.
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm hex
- 2 in extension
Courtesy of TESLA, INC.
Install the bolts (x5) that attach the rear portion of the mid aero shield panel to the rear subframe.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm hex
- 2 in extension
Courtesy of TESLA, INC.
Install the bolt that attaches the LH side of the rear fascia to the inner LH rear quarter panel.

Courtesy of TESLA, INC.

2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- 2 in extension
Courtesy of TESLA, INC.

multimedia:A supplement to the article is available.

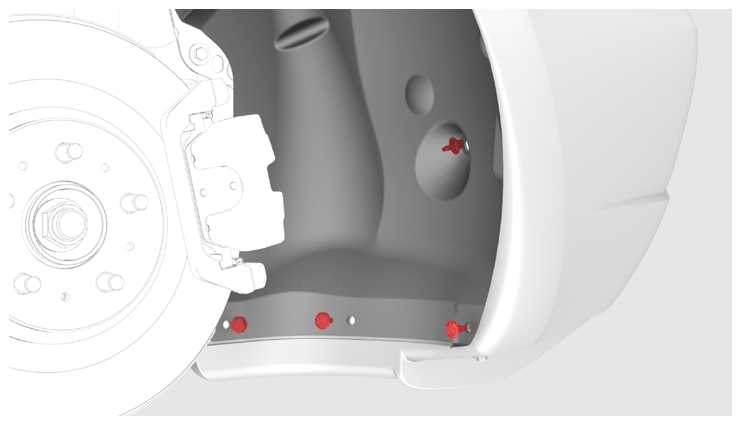

Fasten the clips (x3) and install the push nut that attach the rear portion of the LH rear wheel arch liner to the body.

Courtesy of TESLA, INC.

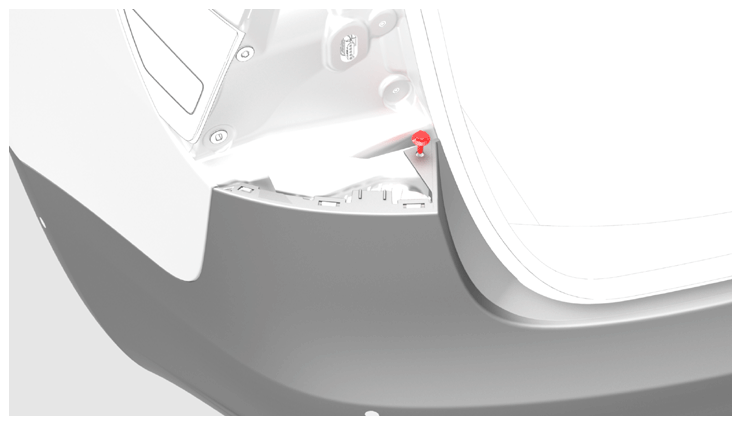

Install the bolt that attaches the LH side of the rear fascia to the outer LH rear quarter panel.
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm hex
Courtesy of TESLA, INC.
Install the LH taillight. See TAILLIGHT - LH (REMOVE AND REPLACE) .
Repeat step 5 through step 8 on the RH side of the vehicle.
Remove the vehicle from the 2 post lift. See RAISE VEHICLE - 2 POST LIFT .
