USB Hub - Center Console - Rear - Remove and Replace: Remove

  1. Remove the center console air vent panel. See ASSEMBLY - REAR VENT - CENTER CONSOLE (REMOVE AND REPLACE) .

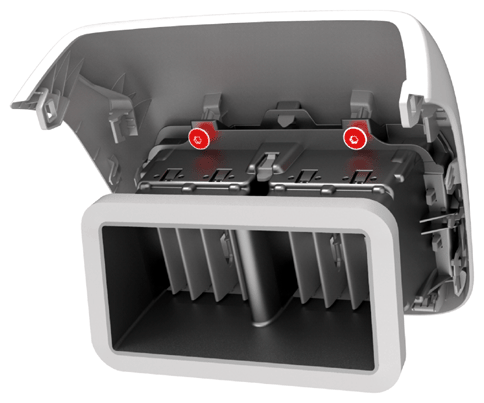

  2. Remove the screws that attach the vent unit to the center console air vent panel, and remove the vent unit from the panel.

    1.6 N.m (1.2 ft-lbs)

    G14748492Courtesy of TESLA, INC.

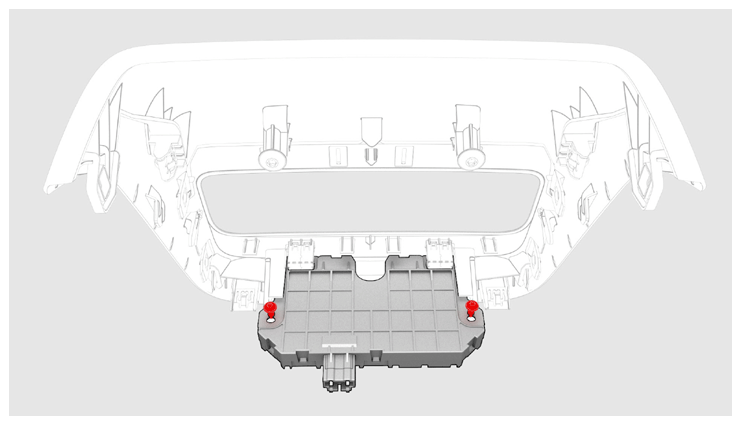

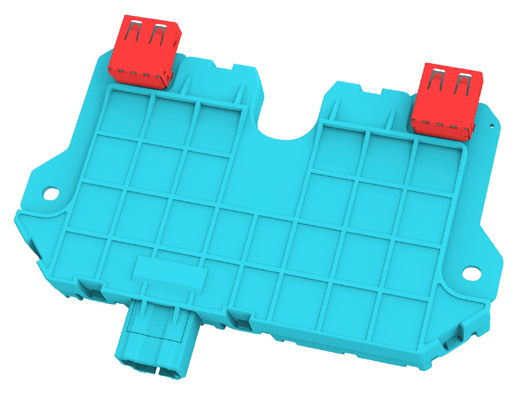

  3. Remove the screws that attach the rear center console USB hub to the center console air vent, and remove the USB hub from the vent.

    1.1 N.m (.8 ft-lbs)

    G14748493Courtesy of TESLA, INC.
    G14748494Courtesy of TESLA, INC.
