Subwoofer - Remove and Replace: Remove

  1. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
  2. Remove the RH trunk side trim. See TRIM - SIDE - TRUNK - RH (REMOVE AND REPLACE) .
  3. Disconnect the electrical harness from the amplifier connectors.
    CAUTION: Make sure 12V power is disconnected before disconnecting the electrical connectors. Failure to disconnect 12V power before removal can result in damage.

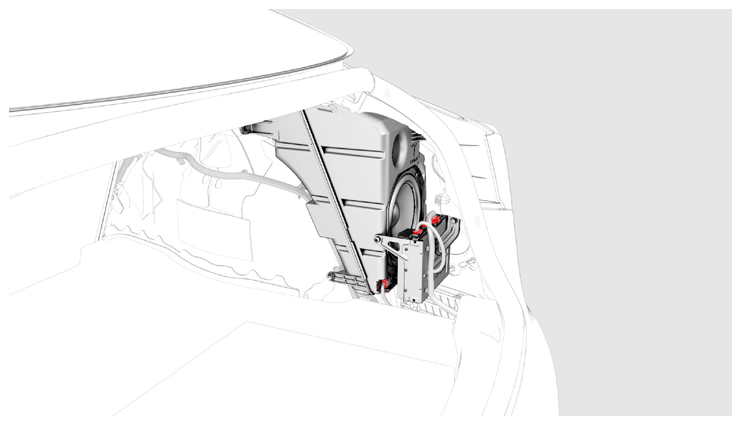

    G14748476Courtesy of TESLA, INC.
  4. Release the clips that attach the electrical harness to the subwoofer.
    G14748477Courtesy of TESLA, INC.
  5. Remove the bolts and nuts that attach the subwoofer to the body, and then remove the subwoofer from the vehicle.

    4.5 N.m (3.3 ft-lbs)

    4.5 N.m (3.3 ft-lbs)

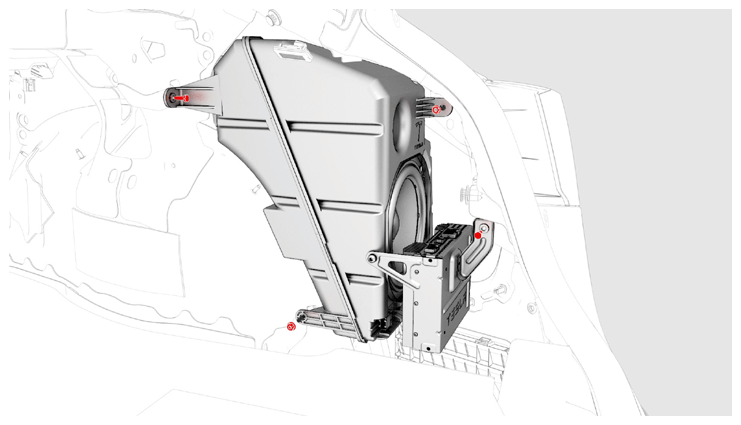

    G14748478Courtesy of TESLA, INC.
