Reseal Trunk Lid To Prevent Water Ingress (SB-23-10-002 R2)

Publication date: 2023-04-27
Reference number: SB-23-10-002 R2
Supersedes refnos: SB-23-10-002, SB-23-10-002 R1

RESEAL TRUNK LID TO PREVENT WATER INGRESS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SB-23-10-002 R2, Date of Issue: April 27, 2023

TESLA:	2017 - 2023 Model 3
CLASSIFICATION:	Repair Bulletin
GROUP:	10 - Body
TESLA, INC.:	Service Bulletin
R2:
MOBILE SERVICE:	Can Perform (where permitted)
CONFIGURATION:	All
COUNTRY/REGION:	All
BUILD LOCATION:	Fremont

SERVICE INFORMATION

The model(s) and model year(s) listed are a general approximation of the affected VIN list. Refer to the VIN/Bulletin Tracker or Customer/Vehicle profile to determine applicability of this bulletin for a particular vehicle.

NOTE: Repair Bulletin: This repair bulletin provides instructions on addressing a noted condition or possible customer concern regarding the operation of Tesla vehicles. These instructions should only be performed by trained professionals.

This Service Document supersedes SB-23-10-002 R1, dated 17-Apr-23. This new revision, R2, modifies the part numbers for the sealant to be used. Each content change is marked by a vertical line in the left margin. Discard the previous version and replace it with this one.

CONDITION

On some Model 3 vehicles, water may have leaked inside the trunk area through the trunk lid.

CORRECTION

Inspect inside the trunk area for signs of water leaks that came through the trunk lid. If this symptom is present, reseal the trunk lid.

Tip: Click here to watch a video that shows an overview of this procedure.

Correction Description	Correction	Time
SB-23-10-002 Not Applicable	S012310002	0.00
Reseal Trunk Lid To Prevent Water Ingress	S022310002	2.40

NOTE: If the trunk seal is replaced, add correction code 11702002.

	Part Number	Description	Quantity
Parts Required	1453383-00-A	LIFTGATE LAMP DOUBLE-ENDED STUD GASKET	2
	1453384-00-A	LIFTGATE LAMP CONNECTOR GASKET	2
		These parts are available through Grainger/McMaster-Carr/MAVOM (EMEA) eProcurement:
	1031124-00-A	LOCTITE 5510 ELASTIC ADH 300mL (except EMEA)	1
	1031124-01-A	TEROSON MS 660 (EMEA)	1
	1939249-00-A	CAULK GUN 10OZ-13OZ CARTIDGE	1
	1939250-00-A	3M URETHANE PRIMER DAUBERS	1
If Necessary	1091069-00-E	SEALS, TRUNK, DECKLID	1
	These part numbers were current at the time of publication. Use the revisions listed or later, unless otherwise specified in the Parts Catalog .
Shop Supplies	Isopropyl Alcohol (IPA) wipes

NOTE: This procedure addresses water ingress through the trunk lid and not due to water entering the vehicle while the trunk was opened in the rain.

NOTE: Although the figures in this procedure highlight one side of the trunk lid, this procedure must be performed on both sides (LH and RH) of the trunk lid.

PROCEDURE

Remove the trunk lid trim (refer to TRIM - LID - TRUNK - REMOVE AND REPLACE ).
Remove the LH and RH rear fog/reverse lights (refer to LIGHT - FOG/REVERSE - REAR - LH - REMOVE AND REPLACE ).

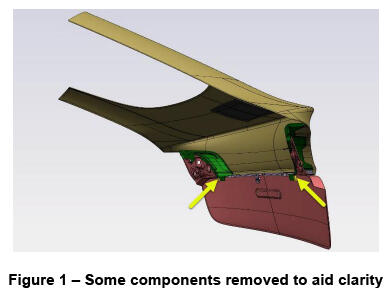

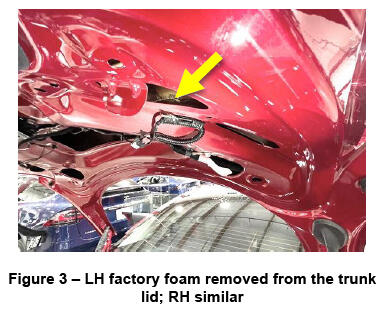

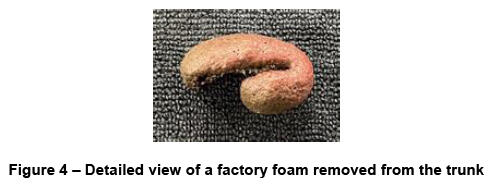

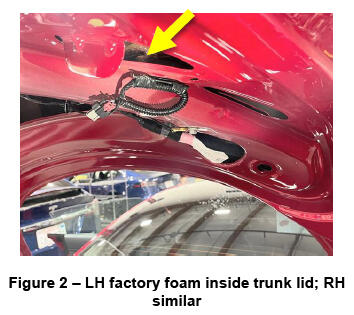

Remove and discard the factory foams (x2) (Figures 1-4) located under the LH and RH lamp can panels inside the trunk lid.
CAUTION: Wear appropriate eye safety glasses and protective earplugs as Personal Protection Equipment (PPE).

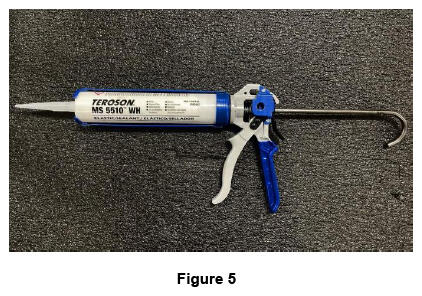

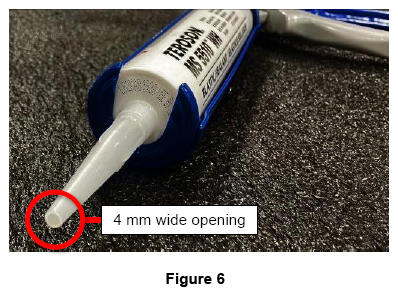

Prepare the caulking gun (1939249-00-A) with the 5510 white sealant (1939248-00-A) (Figure 5). Cut an approximately 4 mm wide opening on the sealant dispensing tube (Figure 6) using a retractable blade knife.

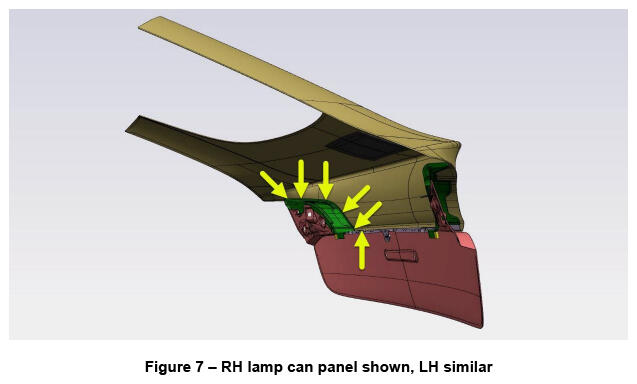

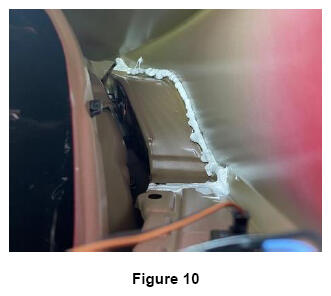

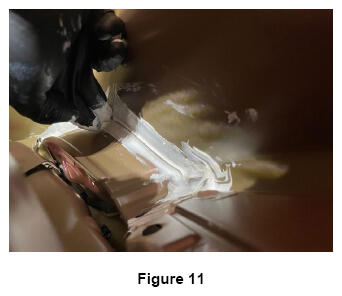

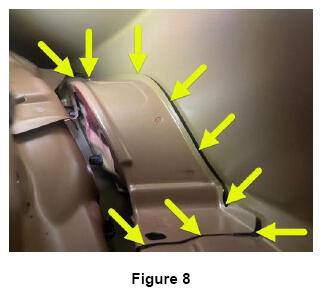

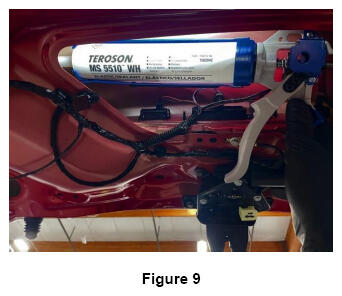

Apply the sealant on top of the LH and RH lamp can panels located inside the trunk assembly (Figures 7-10), and then spread the sealant bead with your finger (Figures 11 and 12) while wearing a nitrile glove. Apply several sealant beads as needed.
CAUTION: Use nitrile gloves as PPE for the remainder of this procedure.

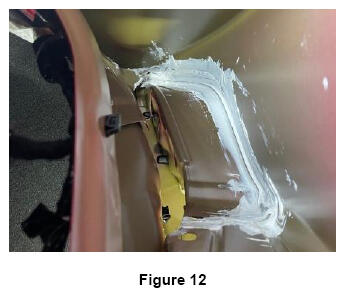

NOTE: Make sure to apply the sealant between the panels (Figure 12).

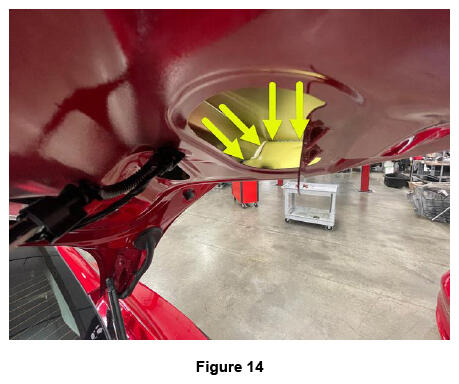

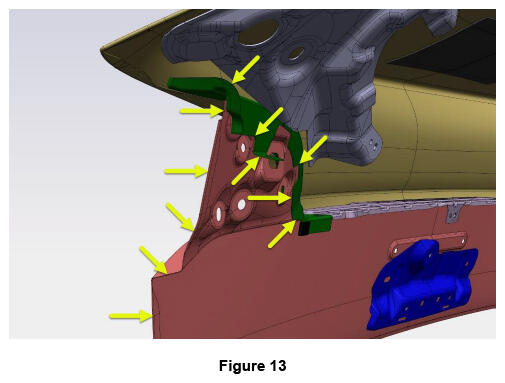

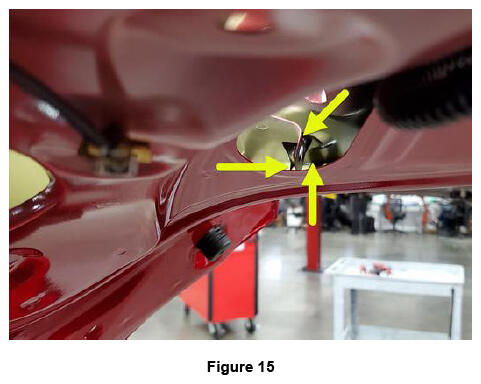

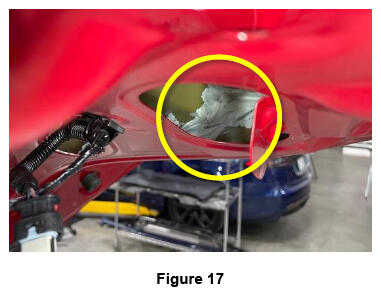

Apply the sealant on the sides and the back side of the LH and RH lamp can panels located inside the trunk lid (Figures 13-18). Spread the sealant bead with your finger while wearing a nitrile glove. Apply several sealant beads as needed.

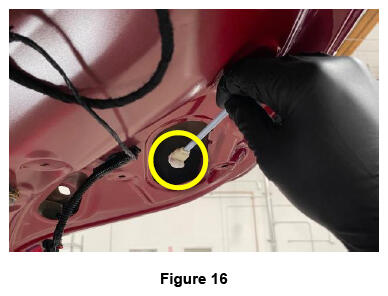

NOTE: Use the dauber (1939250-00-A) in tight spaces (Figure 16).

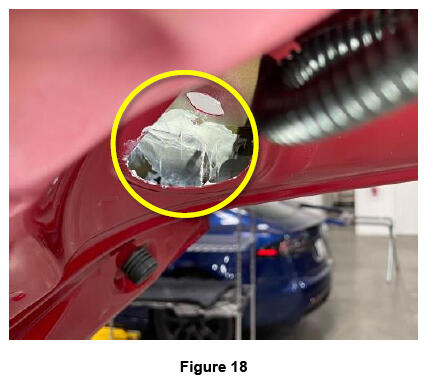

NOTE: Make sure to apply the sealant between the panels (Figure 18).

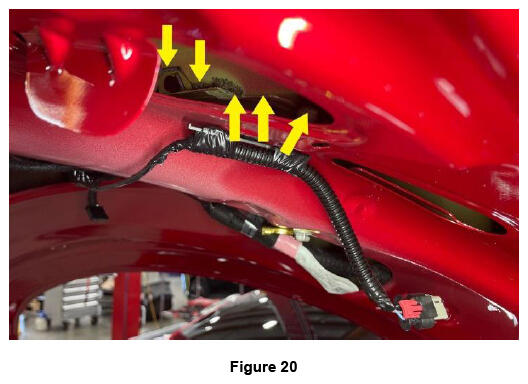

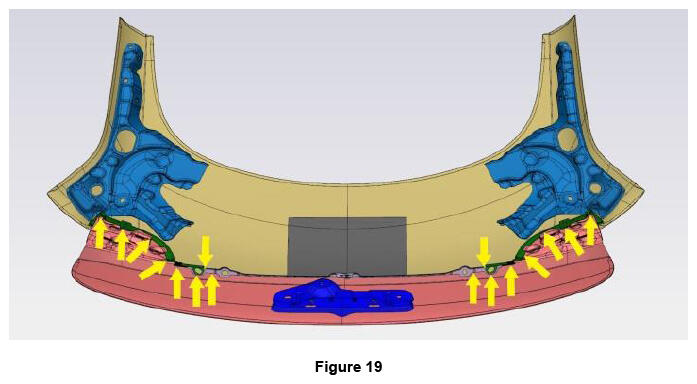

Apply the sealant on the bottom side of the LH and RH lamp can panels located inside the trunk lid (Figures 19 and 20). Apply several sealant beads as needed.
NOTE: Use the dauber to apply the sealant in small spaces.

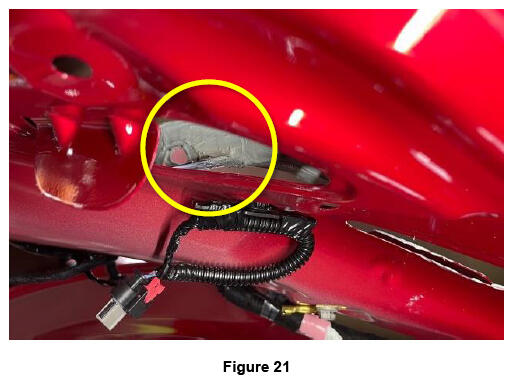

NOTE: Make sure to apply the sealant between the panels (Figure 21).

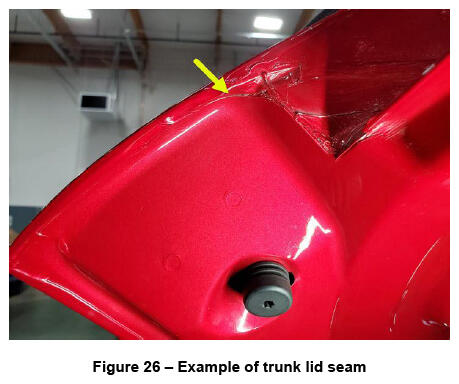

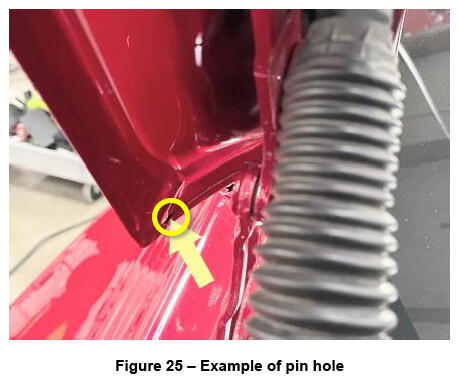

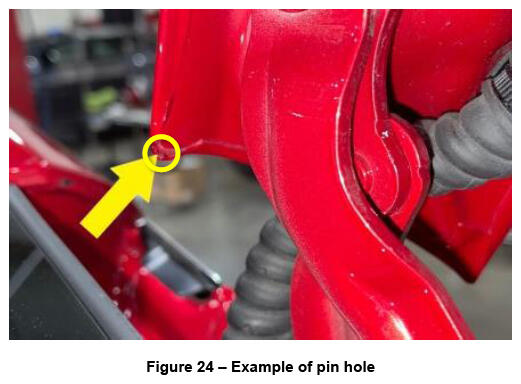

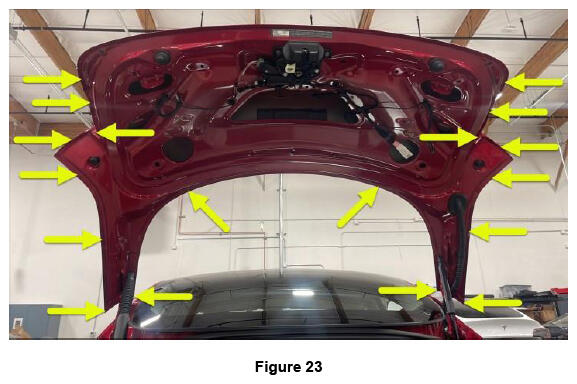

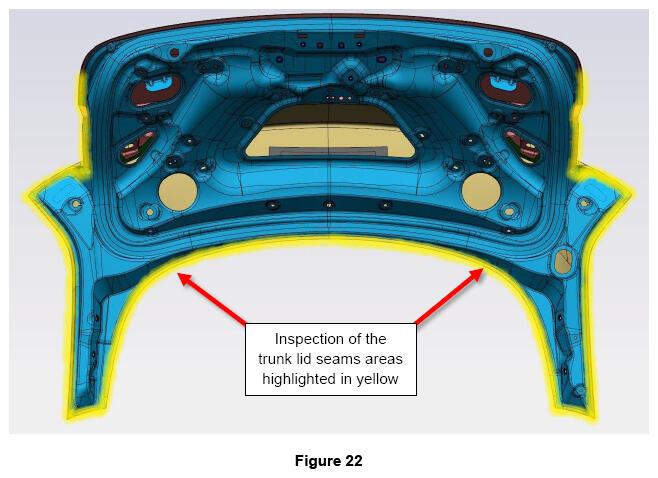

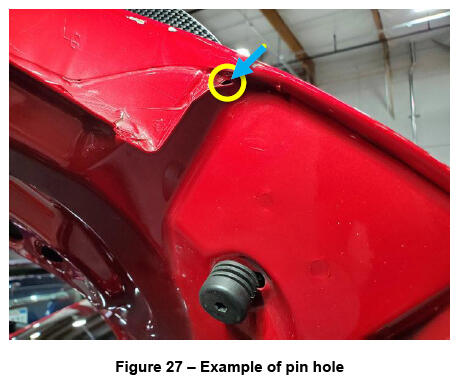

Inspect the trunk lid seams: Locate openings and pin holes in the highlighted areas (Figures 22-27).

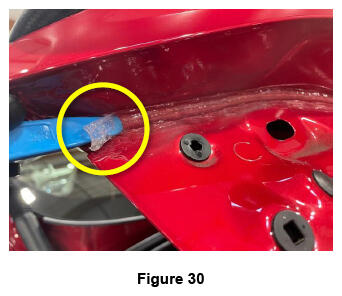

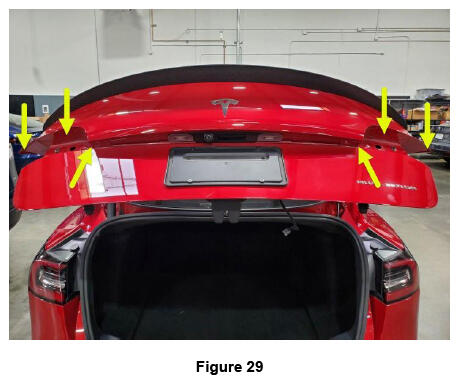

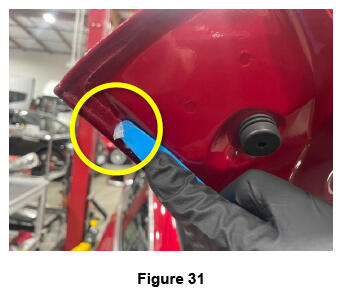

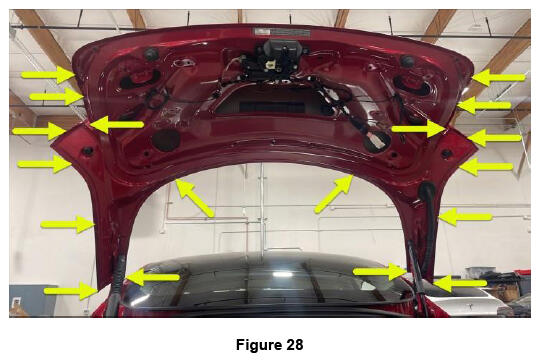

Use a plastic trim tool to remove any previously applied non-factory sealants in the highlighted areas, if present (Figures 28-31).
CAUTION: Do NOT remove factory sealant. To differentiate between factory sealant and non-factory sealant, factory sealant is painted over and is harder to remove, and non-factory sealant is usually clear and easier to remove than factory sealant.

NOTE: Use adhesive remover, as needed.

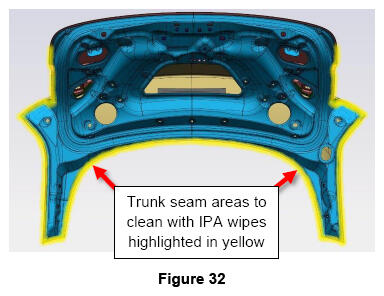

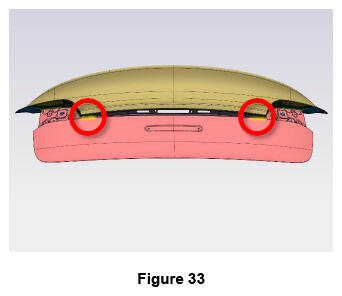

Clean the trunk lid seams areas with Isopropyl Alcohol (IPA) wipes (Figures 32 and 33).

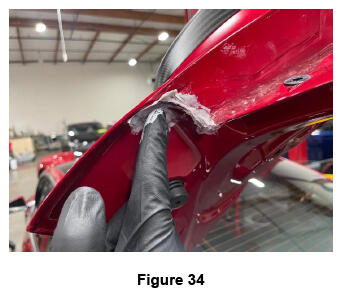

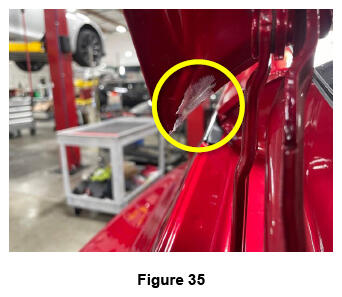

Apply sealant ONLY on the openings and pin holes found during the inspection (Figures 34 and 35).
CAUTION: Do NOT apply sealant to the entire trunk lid.

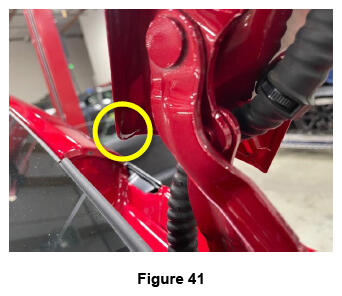

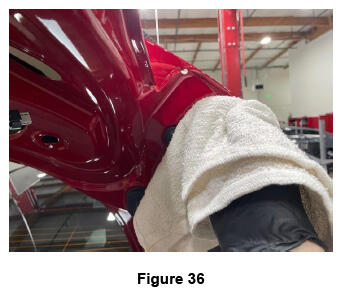

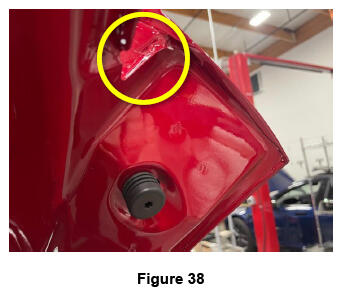

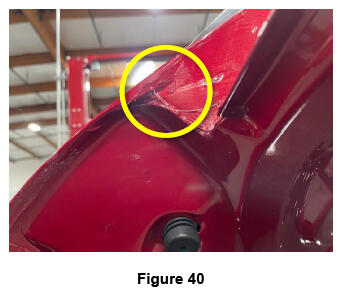

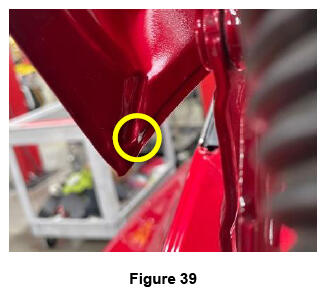

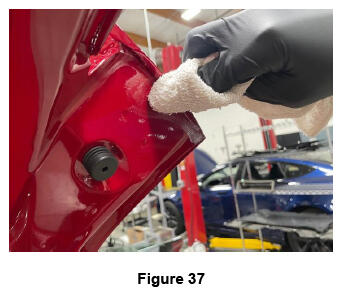

Remove excess sealant with a clean, dry microfiber cloth. Allow 1 hour for the sealant to fully cure (Figures 36-41).
CAUTION: Do not use chemicals to remove excess sealant.

NOTE: The sealant must be allowed to cure for 1 hour because touch-up paint will be applied onto it later in this procedure.

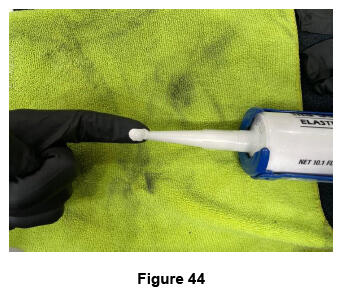

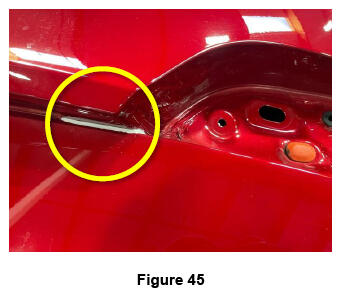

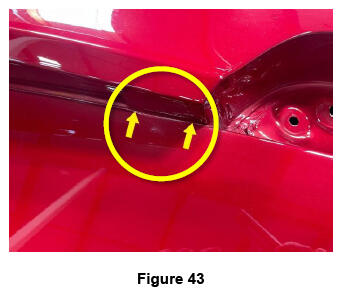

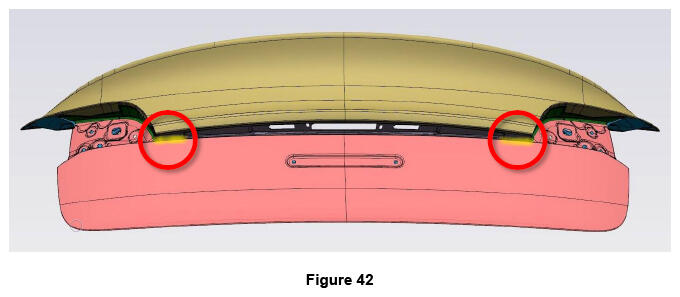

Apply sealant on the upper and lower panel mating surfaces for the LH and RH sides (Figures 42-45). Allow 1 hour for the sealant to fully cure.
NOTE: Apply sealant with your finger while wearing a nitrile glove, and then work sealant onto the factory sealant.

NOTE: Make sure to apply the sealant between the panel mating surfaces (Figure 45).

NOTE: The sealant must be allowed to cure for 1 hour because touch-up paint will be applied onto it later in this procedure.

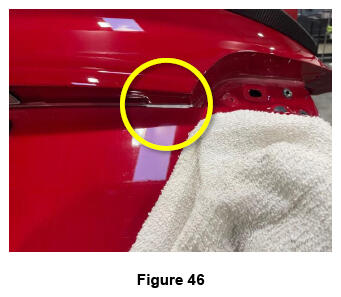

Remove excess sealant from the upper and lower panel mating surfaces with a clean, dry microfiber cloth (Figure 46). Allow 1 hour for the sealant to fully cure.
CAUTION: Do not use chemicals to remove excess sealant.

NOTE: The sealant must be allowed to cure for 1 hour because touch-up paint will be applied onto it later in this procedure.

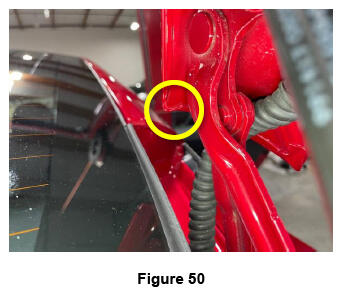

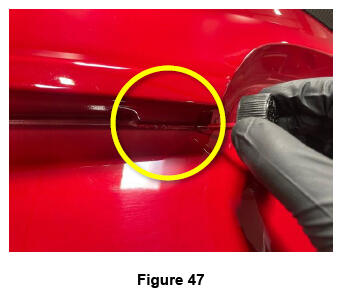

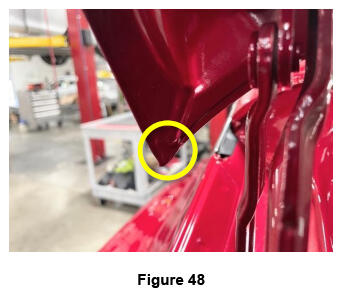

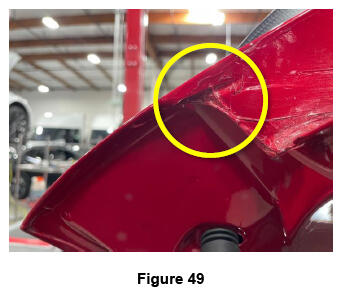

Apply touch-up paint onto newly sealed areas (Figure 47-50).
NOTE: Make sure sealant is dry to the touch before touch-up paint is applied.

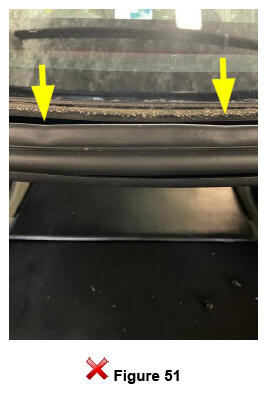

Inspect the overall condition of the trunk seal. If the trunk seal is compromised (Figure 51), replace the seal (refer to SEAL - TRUNK - REMOVE AND REPLACE ).
Close the trunk.

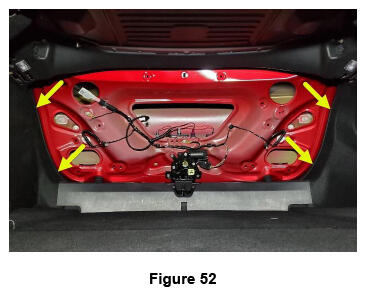

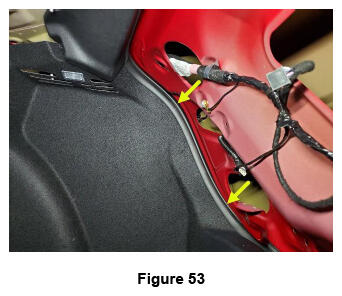

Verify that the trunk seal fully contacts the trunk lid and that there are no visible gaps (Figures 52 and 53).
NOTE: With assistance, shine a flashlight from the exterior and make sure no light is visible on the inside. If light is visible, then replace the trunk seal and repeat this step. If light is still visible after the replacement of the trunk seal, then perform trunk seal adjustment, as needed.
Open the trunk.

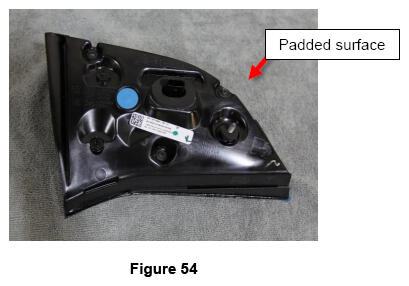

Put the RH rear fog/reverse light upside down on a padded surface (Figure 54).

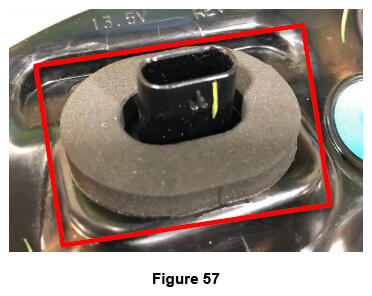

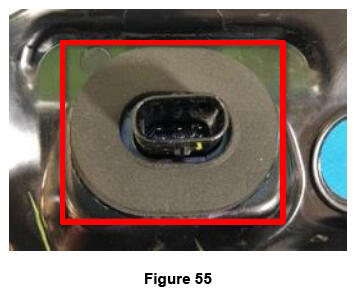

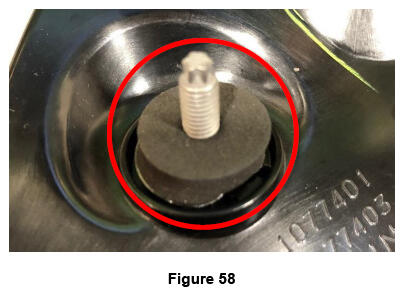

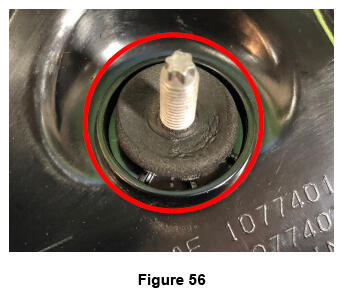

Remove and discard the gaskets for the RH light connector (Figure 55) and mounting stud (Figure 56), and then replace them with new ones (Figures 57 and 58).
Repeat steps 20 and 21 for the LH rear fog/reverse light.
Install the LH and RH rear fog/reverse lights (refer to LIGHT - FOG/REVERSE - REAR - LH - REMOVE AND REPLACE ).
Install the trunk lid trim (refer to TRIM - LID - TRUNK - REMOVE AND REPLACE )
