Wheel Arch Liner - Rear - LH - Remove and Replace: Remove

  1. Remove the LH rear wheel. See WHEEL (REMOVE AND INSTALL) .
  2. Remove the bolt and release the clips (x16) that attach the LH rear wheel arch liner to the vehicle, and then remove the liner from the vehicle

    5 N.m (3.7 ft-lbs)

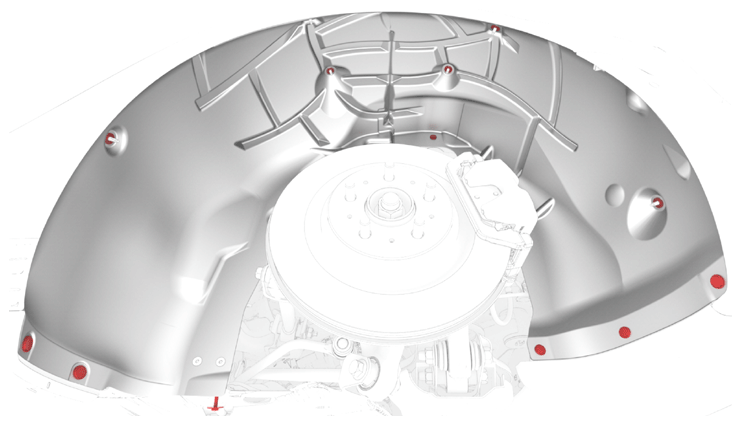

    G14739743Courtesy of TESLA, INC.

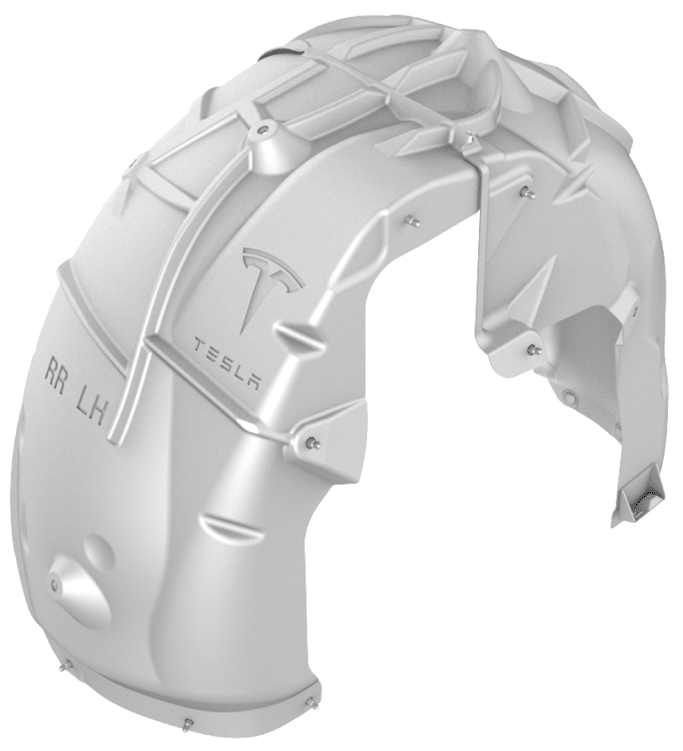

    G14739744Courtesy of TESLA, INC.
