Noise Absorber - Motor Bay - Front - Remove and Replace: Remove

  1. Remove the brake booster. See BOOSTER - BRAKE - ELECTROMECHANICAL (LHD) (REMOVE AND REPLACE) .
  2. Remove the windshield washer reservoir. See RESERVOIR - WINDSHIELD WASHER (REMOVE AND REPLACE) .
  3. Remove the steering column control module. See MODULE - STEERING COLUMN CONTROL (REMOVE AND REPLACE) .
  4. Release coolant hoses from car computer.
  5. Release black connector from right body controller and disconnect. See HARNESS - DOOR - FRONT - LH (REMOVE AND REPLACE) .
  6. Remove the front dash noise absorber from the vehicle.

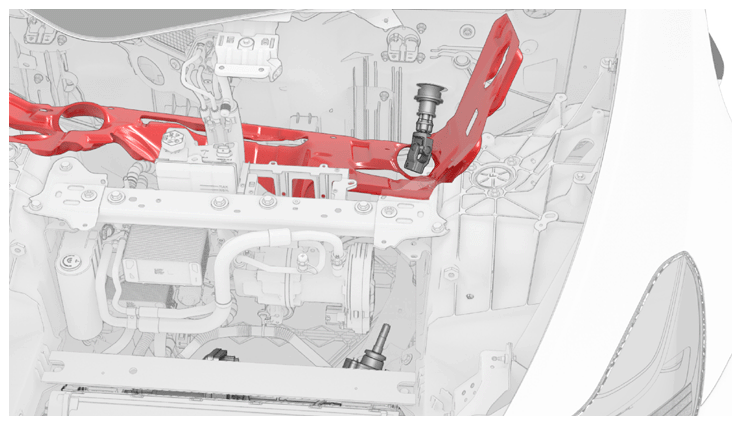

    G14739734Courtesy of TESLA, INC.

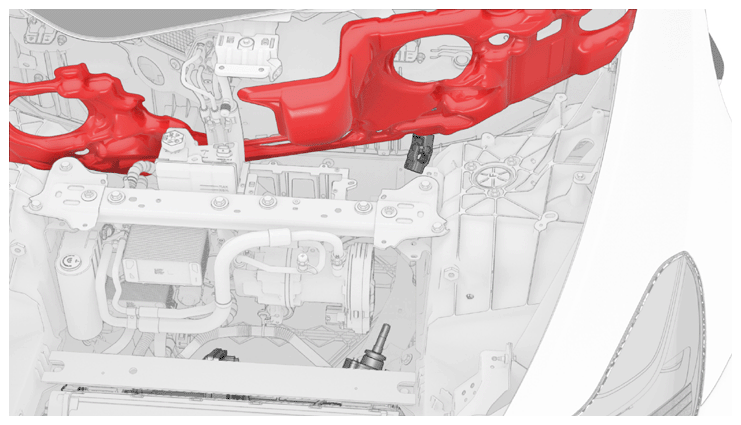

    G14739735Courtesy of TESLA, INC.

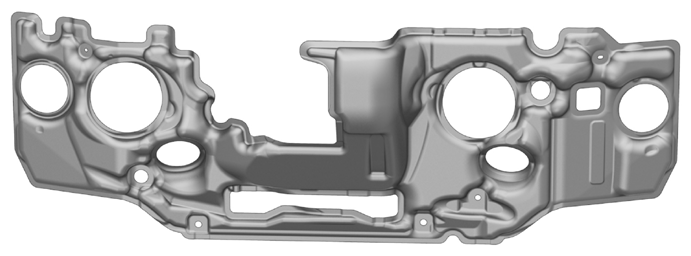

    G14739736Courtesy of TESLA, INC.
