Noise Absorber - Motor Bay - Front - Remove and Replace: Install

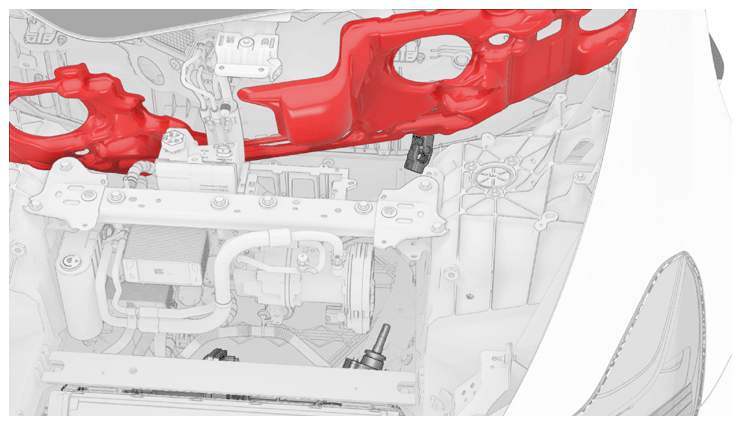

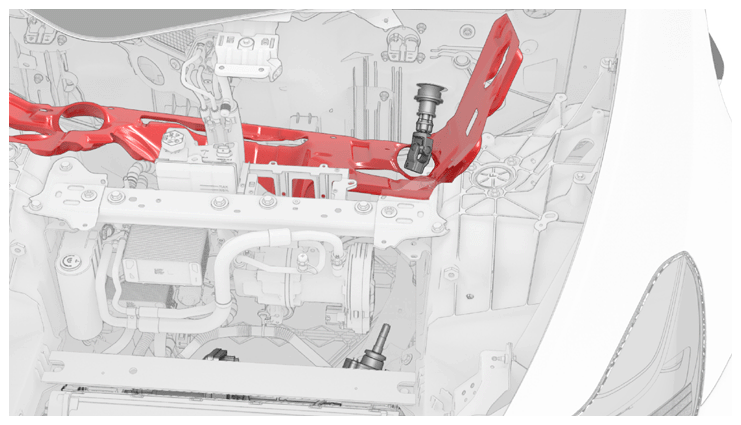

  1. Install the front dash noise absorber from the vehicle.
    G14739737Courtesy of TESLA, INC.
    G14739738Courtesy of TESLA, INC.
  2. Connect black connector from right body controller and disconnect. See HARNESS - DOOR - FRONT - LH (REMOVE AND REPLACE) .
  3. Connect coolant hoses from car computer.
  4. Install the steering column control module. See MODULE - STEERING COLUMN CONTROL (REMOVE AND REPLACE) .
  5. Install the windshield washer reservoir. See RESERVOIR - WINDSHIELD WASHER (REMOVE AND REPLACE) .
  6. Install the brake booster. See BOOSTER - BRAKE - ELECTROMECHANICAL (LHD) (REMOVE AND REPLACE) .
