Underhood Apron - Rear - Remove and Replace: Remove

  1. Open the hood.

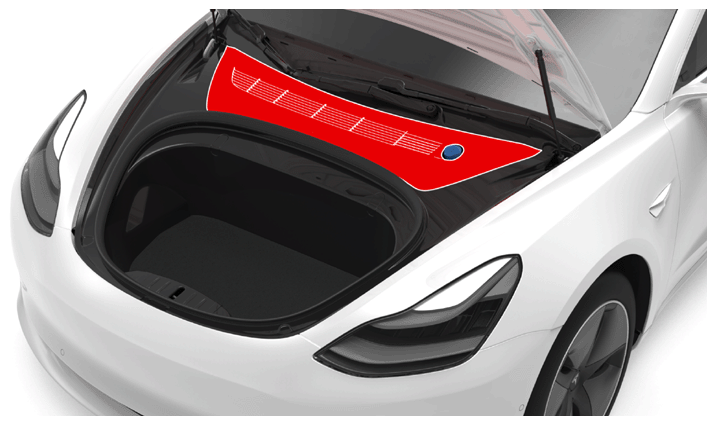

  2. Release the clips (x12) that attach the rear underhood apron to the vehicle, and then remove the apron from the vehicle.
    G14739969Courtesy of TESLA, INC.
