Cover - Shock Tower - LH - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  3. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  4. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .

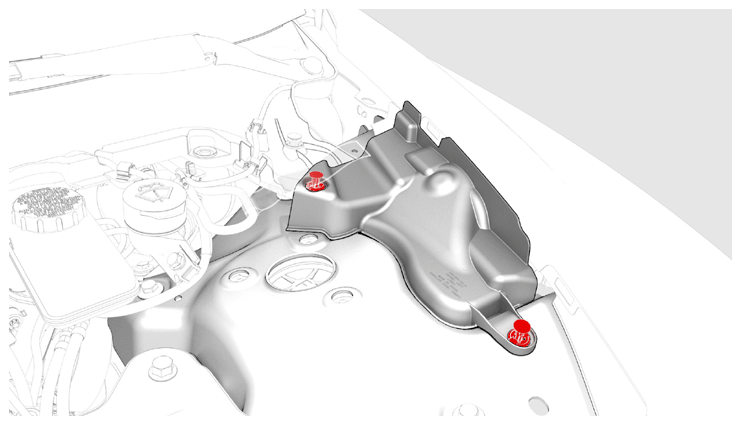

  5. Release the clips that attach the LH shock tower cover to the vehicle, and then remove the cover from the vehicle.

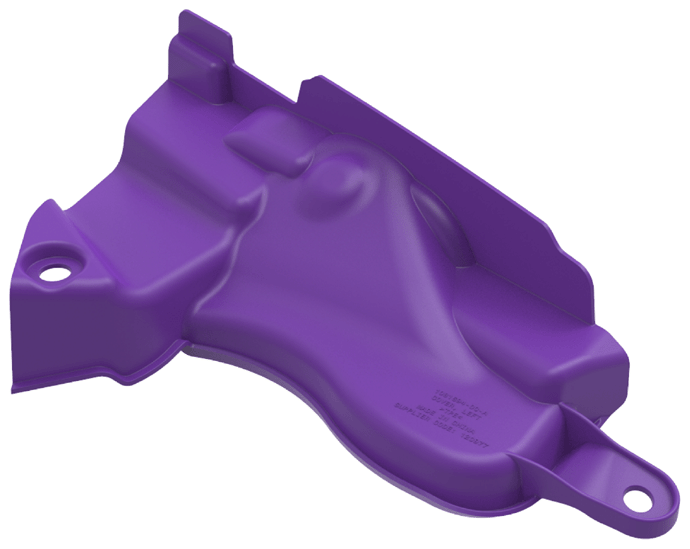

    LH shock tower cover shown, RH similar

    G14739963Courtesy of TESLA, INC.
    G14739964Courtesy of TESLA, INC.
