Carrier Bracket - Cowl Screen - LH - Remove & Replace: Remove
- Remove the LH hood hinge cover. See: COVER - HINGE - ACTIVE HOOD - LH - REMOVE AND REPLACE
.

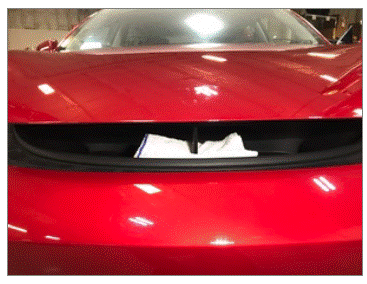

- Insert a rag over the hood latch to keep the hood slightly open.
 Courtesy of TESLA, INC.
|

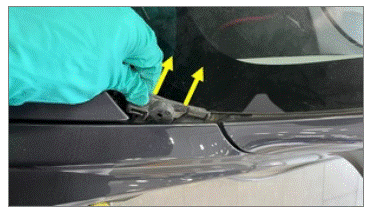

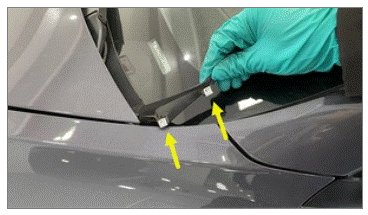

- Remove the clips (x2) that attach the LH side of the cowl screen to the vehicle, and then release the LH side of the cowl screen from the vehicle.
 Courtesy of TESLA, INC.
|

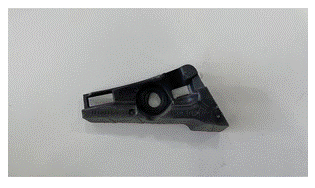

- Release the clip that attaches the LH cowl screen carrier bracket to the vehicle, and then remove the LH cowl screen carrier bracket from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
