Carrier Bracket - Cowl Screen - LH - Remove & Replace: Install

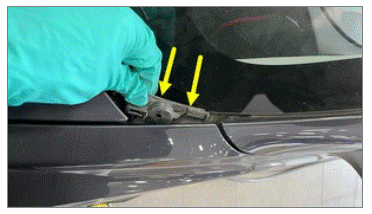

  1. Install the LH cowl screen carrier bracket to the vehicle.
    G00660300Courtesy of TESLA, INC.

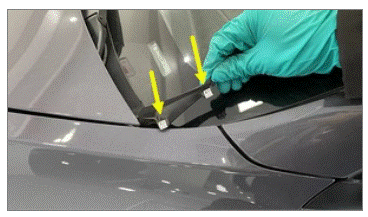

  2. Install the LH side of the cowl screen to the vehicle.
    G00660301Courtesy of TESLA, INC.
  3. Open the hood and remove the rag from over the hood latch.
  4. Install the LH hood hinge cover. See: COVER - HINGE - ACTIVE HOOD - LH - REMOVE AND REPLACE .
