Bracket - License Plate - Rear (EMEA) - Remove and Replace: Remove

  1. Remove the screws (x4) that attach the rear license plate to the rear license plate bracket, if a license plate is installed. Otherwise, skip to the next step.

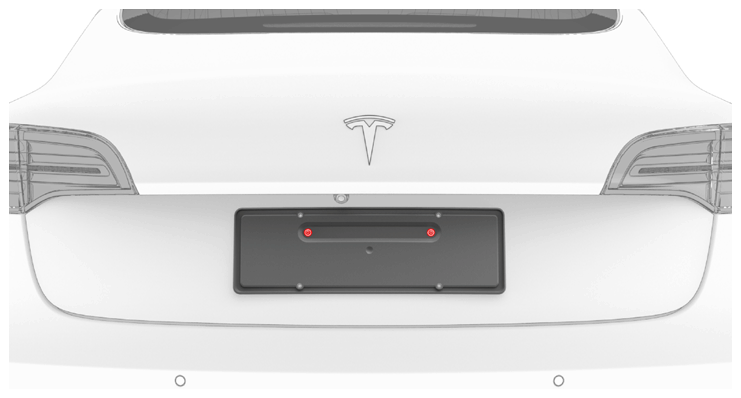

  2. Remove the screws (x2) that attach the rear license plate bracket to the vehicle, and then remove the bracket from the vehicle.
    G14739837Courtesy of TESLA, INC.
