Splash Guard - LH - Remove and Replace: Remove

  1. Turn the steering wheel fully to the left to provide access to the working area.

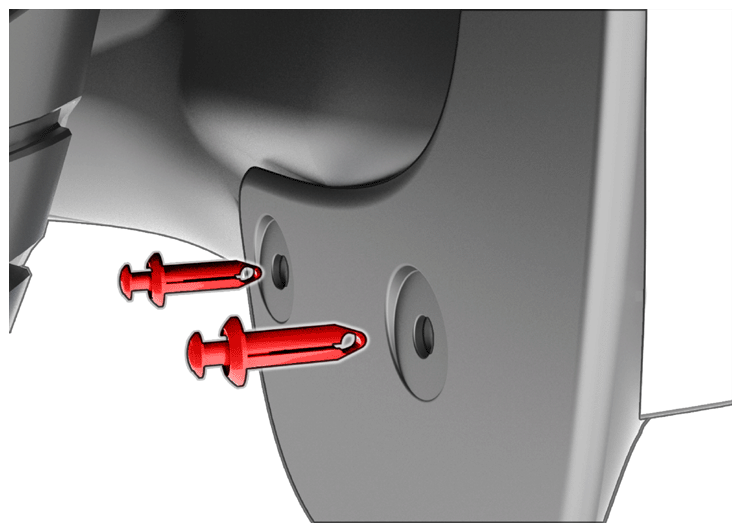

  2. Remove the screws and washers (1st generation kits) or push clips (2nd generation kits) that attach the splash guard to the wheel arch liner.
    G14739923Courtesy of TESLA, INC.
    G14739924Courtesy of TESLA, INC.

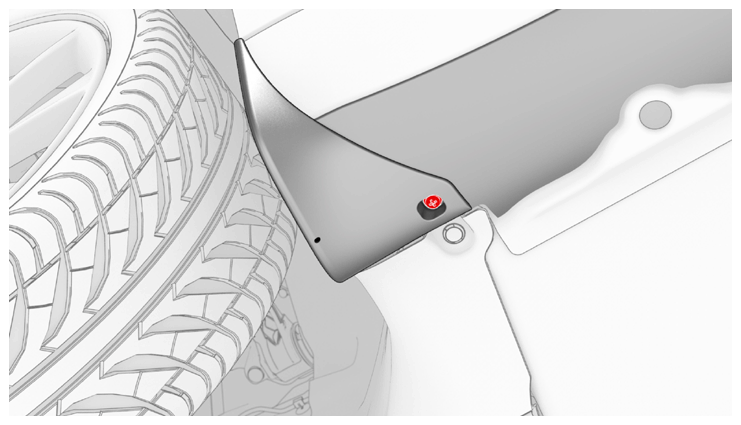

  3. Remove the bolt that attaches the bottom of the mud flap to the lower rocker panel cover.
    G14739925Courtesy of TESLA, INC.
  4. Remove the splash guard and mud flap assembly from the vehicle.

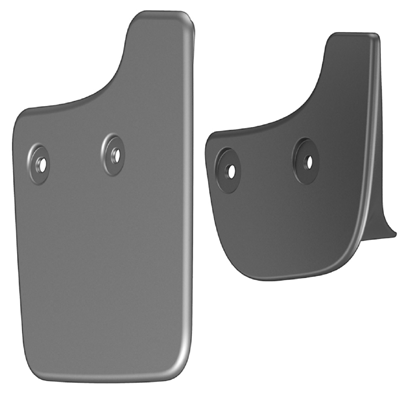

  5. Pull the splash guard away from the mud flap to release the adhesive tape.
    G14739926Courtesy of TESLA, INC.
  6. Clean the mud flap with an alcohol wipe and allow to fully dry.
