Mud Flap - LH - Remove and Replace: Remove

  1. Turn the steering wheel fully to the left to provide access to the working area.
  2. Remove the bolt that attaches the bottom of the mud flap to the lower rocker panel cover.

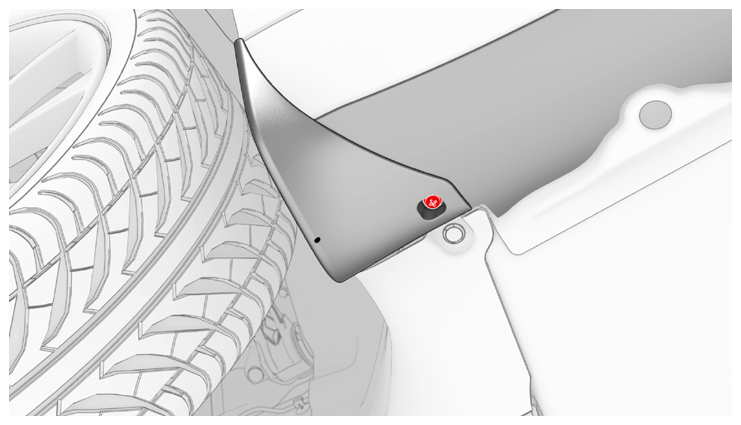

    G14739905Courtesy of TESLA, INC.
  3. Remove the screws and washers (1st generation kits) or push clips (2nd generation kits) that attach the mud flap to the wheel arch liner.

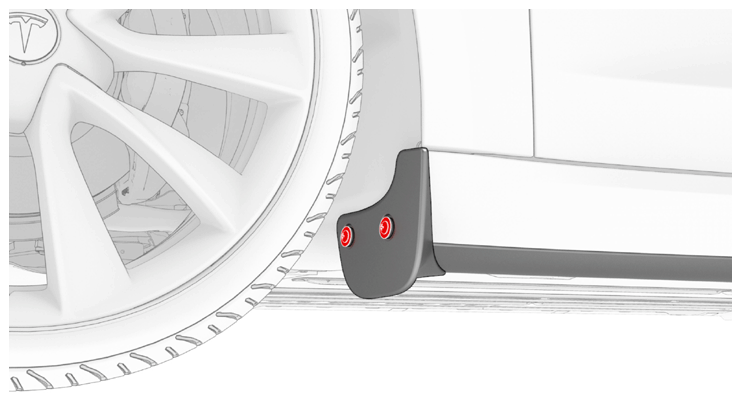

    G14739906Courtesy of TESLA, INC.

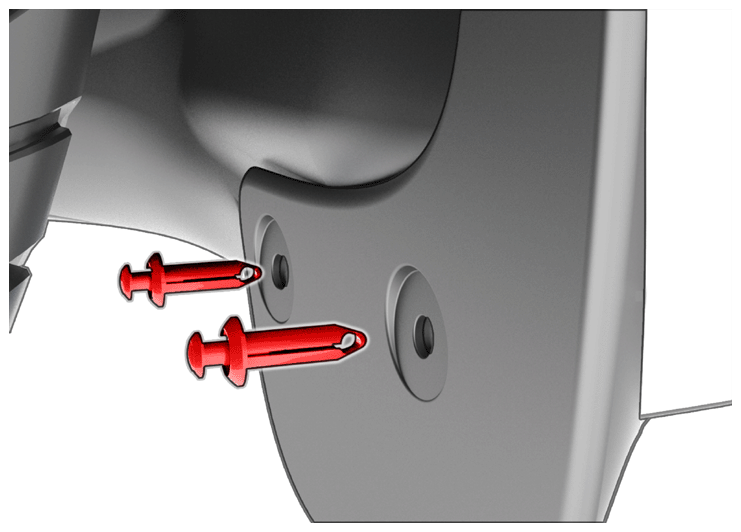

    G14739907Courtesy of TESLA, INC.
  4. Remove the mud flap from the vehicle.
