Torque Specifications

TORQUE SPECIFICATIONS: COVER - ROCKER PANEL - LOWER - LH (REMOVE AND REPLACE)

Description Torque Value Recommended Tools Reuse/Replace Notes

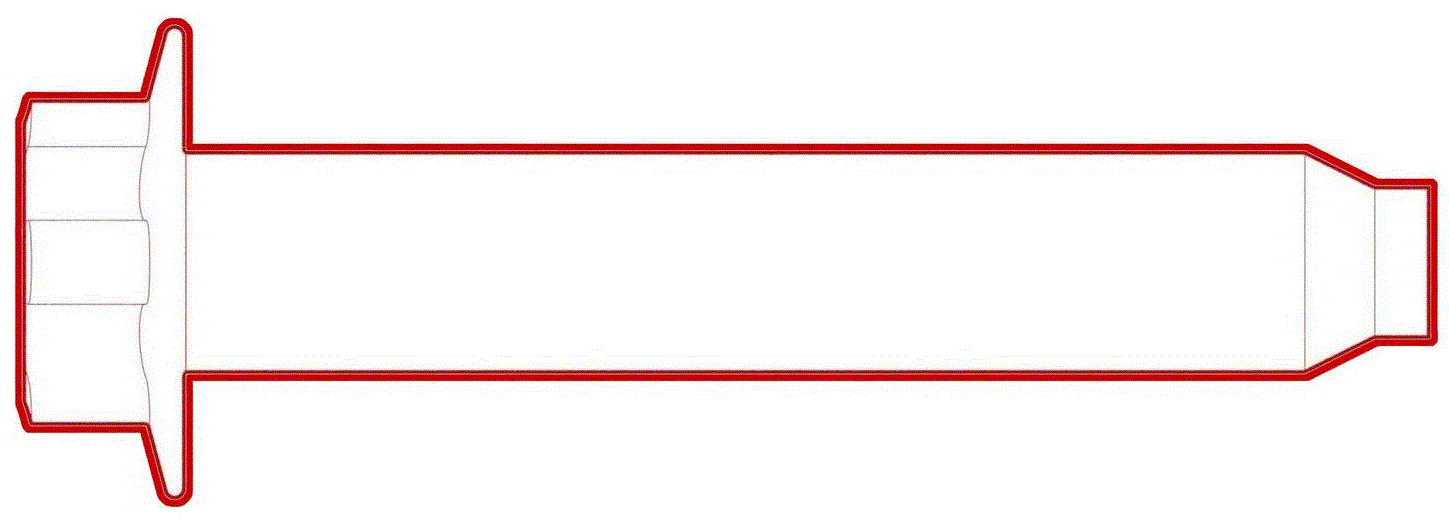

Bolts that attach the LH lower rocker panel cover to the body 5 N.m (3.7 ft-lbs)
  • 10 mm socket
  • 6 in extension
Reuse
