Cover - Rocker Panel - Lower - LH - Remove and Replace: Remove

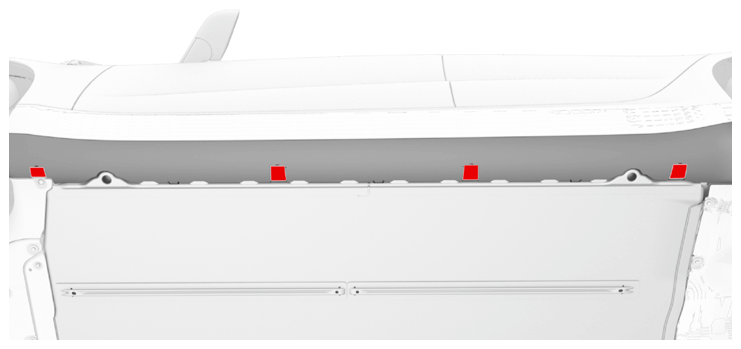

  1. Release the LH lower rocker panel bolt covers.
    G14739889Courtesy of TESLA, INC.
  2. Remove the bolts that attach the LH lower rocker panel cover to the body.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 6 in extension
    G14739890Courtesy of TESLA, INC.
  3. Release the clips that attach the LH lower rocker panel cover to the front and rear wheel arch liners.

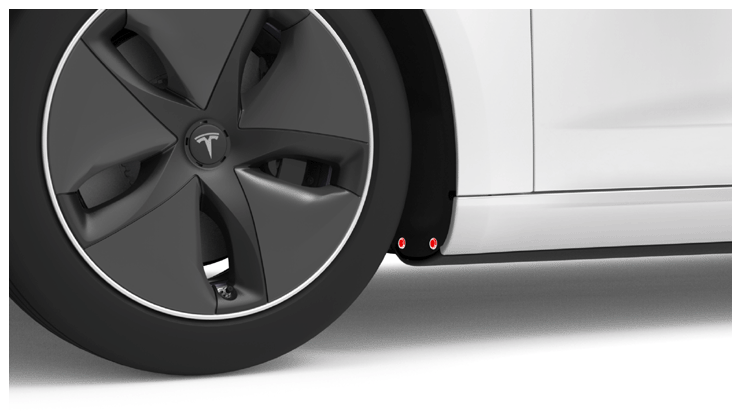

    NOTE: Front Clips Shown Below.
    G14739891Courtesy of TESLA, INC.
    NOTE: Rear Clips Shown Below.
    G14739892Courtesy of TESLA, INC.
  4. Release the clips that attach the LH lower rocker panel cover to the rocker panel, and then remove the cover from the panel.
    G14739893Courtesy of TESLA, INC.
    G14739894Courtesy of TESLA, INC.
