Cover - Applique - B-Pillar - LH - Remove and Replace: Remove

  1. Open the LH front and rear doors.
  2. Release the clips that attach the B-pillar applique fastener cover to the vehicle, and then remove the cover.

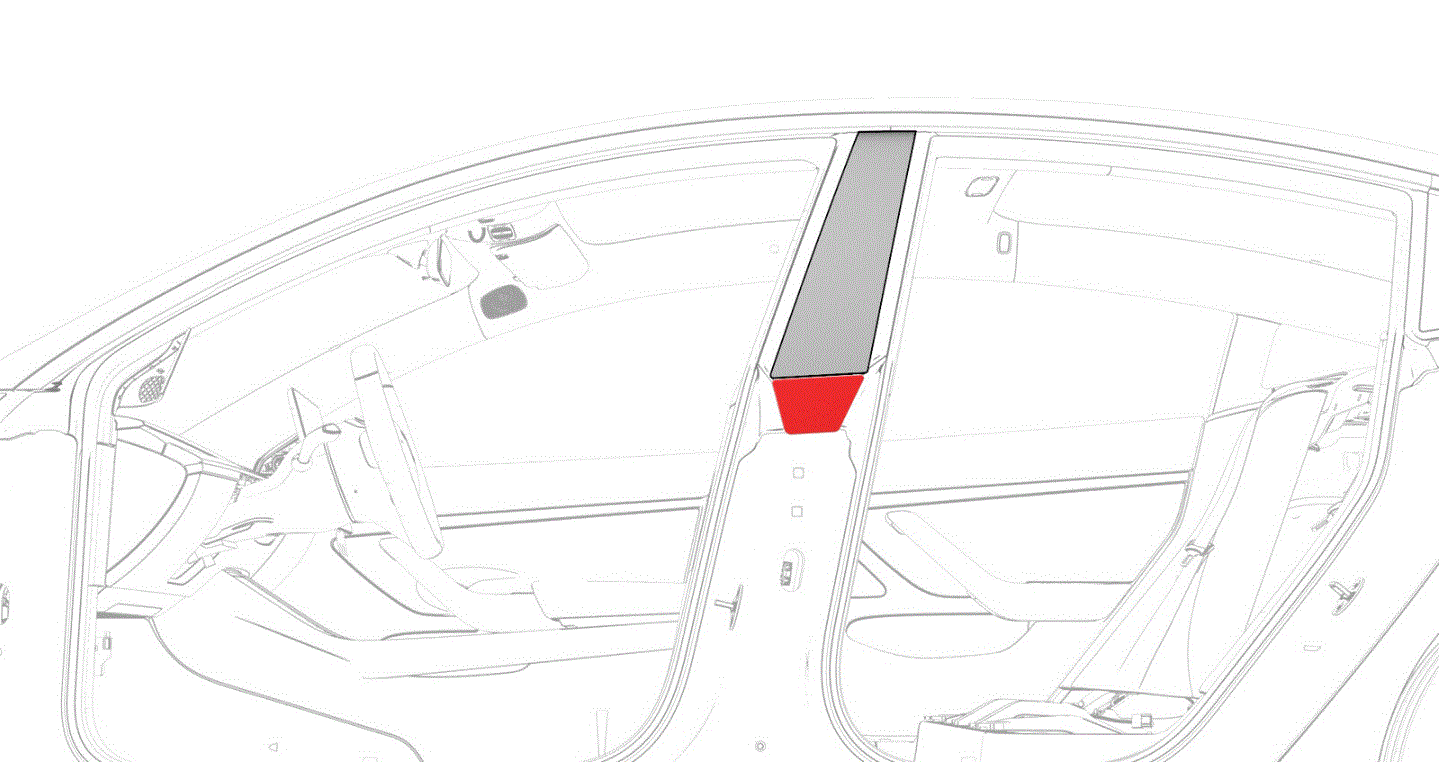

    G00658681Courtesy of TESLA INC

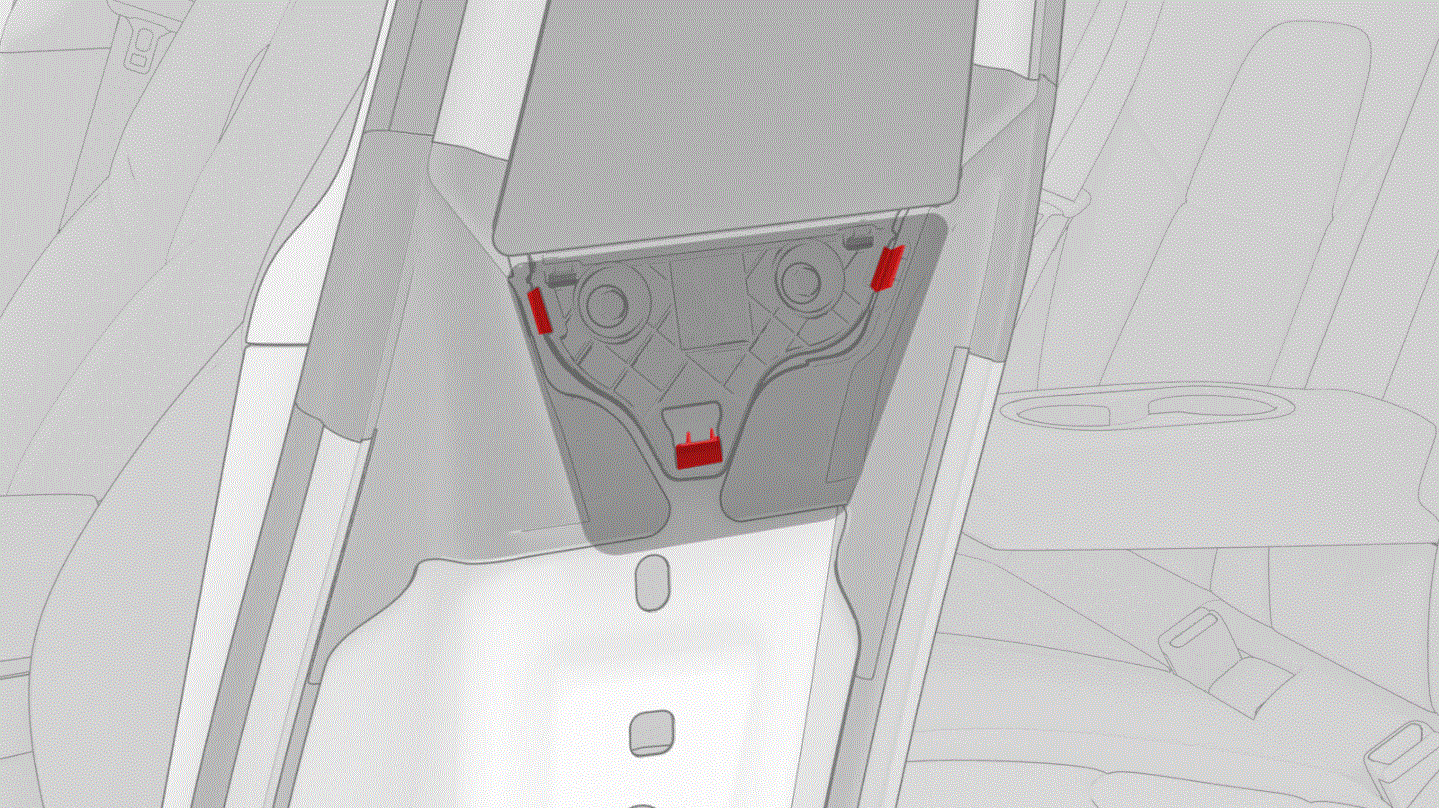

    G00658682Courtesy of TESLA INC
