Brightwork - Quarter Panel - LH - Remove and Replace: Remove

Use the exterior switch to open the liftgate.v
Remove the LH upper brightwork. See Brightwork - Upper - LH - Remove and Replace .
Use IPA wipes to clean the exterior area of the rear quarter body glass.
NOTE: Allow at least 1 minute of dry time.

Courtesy of TESLA, INC.
Apply masking tape around the rear quarter glass body area.

Courtesy of TESLA, INC.

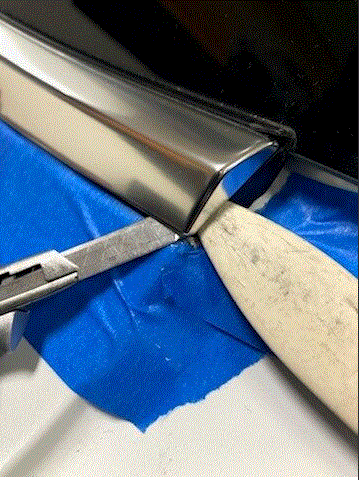

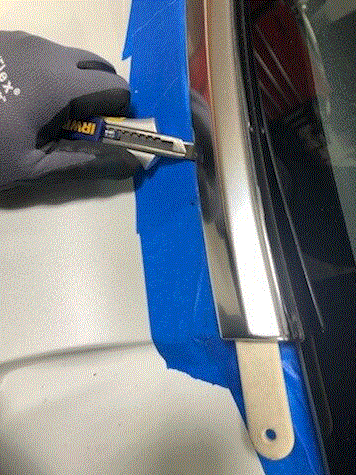

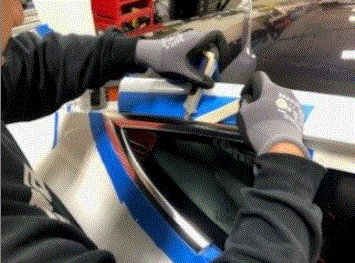

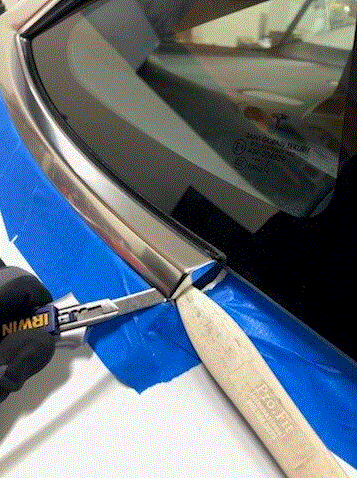

Using a plastic trim tool, pry out the rear edge of the LH quarter brightwork from the LH rear quarter body glass, and then use a retractable blade to cut the urethane that attaches brightwork to the vehicle.
WARNING: Always wear cut-resistant gloves when using cutting tools.

CAUTION: Use caution with the clip that attaches the rear quarter brightwork to the LH upper body side brightwork.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
