Applique - B-Pillar - LH - Remove and Replace: Remove

WARNING: Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration  .
  1. Open the LH front and rear doors.
  2. Release the clips that attach the B-pillar applique fastener cover to the vehicle, and then remove the cover.
    G14739871Courtesy of TESLA, INC.
    G14739872Courtesy of TESLA, INC.
  3. Remove the bolts that attach the B-pillar applique to the body, but do not remove the applique from the vehicle at this time.
    G14739873Courtesy of TESLA, INC.

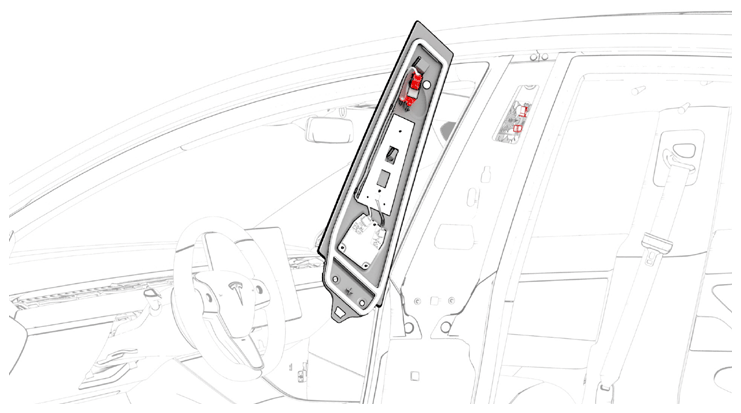

  4. Release the B-pillar applique from the body, and then disconnect the camera connectors from the B-pillar applique.
    CAUTION: Use caution not to damage the camera connectors.
    G14739874Courtesy of TESLA, INC.
  5. Remove the B-pillar applique from the vehicle.
    G14739875Courtesy of TESLA, INC.
