Applique - B-Pillar - LH - Remove and Replace: Notes

Last modified: 23/02/2023 01:09:56

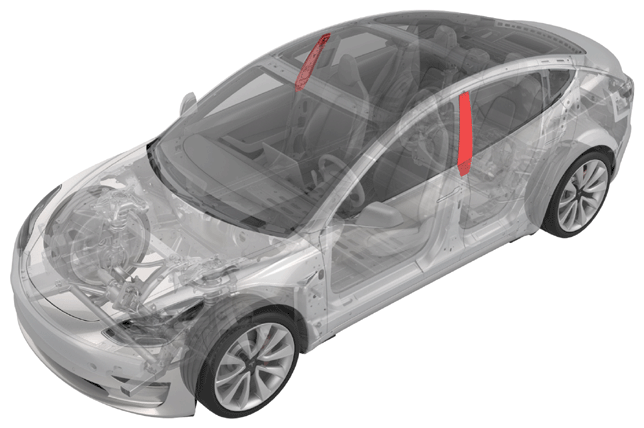

Fig 1: Applique (B-Pillar) Components Location

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.

NOTE: Replacing the B-pillar applique also replaces the following components:

• LH B-Pillar Applique - Replaces the LH side-view DAS camera, the external NFC key card reader, and the LH Bluetooth endpoint.
• RH B-Pillar Applique - Replaces the RH side-view DAS camera and the RH Bluetooth endpoint.
