Tesla Badge - Front - Remove and Replace: Remove

NOTE: The badge cannot be reinstalled if removed. If the badge is removed for any reason, it must be replaced with a new part.
  1. Prepare the badge removal tool with approximately 60 centimeters of monofilament line.
  2. With the hood closed, position the badge removal tool so that the monofilament line cuts under a corner of the front Tesla badge.
  3. Move the badge removal tool in a sawing motion to separate the front Tesla badge from the hood.

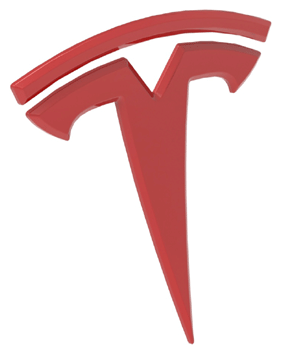

    G14739782Courtesy of TESLA, INC.
  4. Use IPA wipes to clean all adhesive residue and debris from the hood surface.
