Badge - Rear - LH - Remove and Replace (China): Remove
NOTE:
The badge cannot be reinstalled if removed. If the badge is removed for any reason, it must be replaced with a new part.

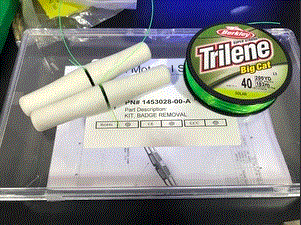

- Cut a piece of fishing line about 24 in. long in length.
- Tie a slip knot to one handle at one end of the fishing line.
- Tie a slip knot to the other handle at the other end of the fishing line.
- Remove the LH CN badge from the rear trunk by moving the fishing line back and forth between the rear trunk and badge.
