Seal - Secondary - Rear Door - LH - Remove and Replace: Remove

  1. Open the LH rear door.

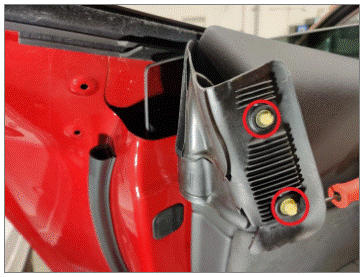

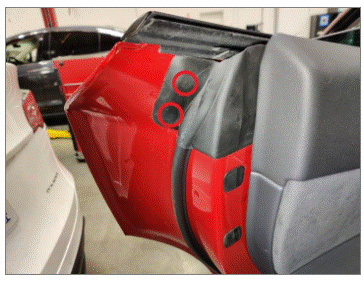

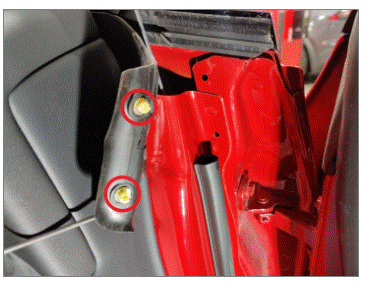

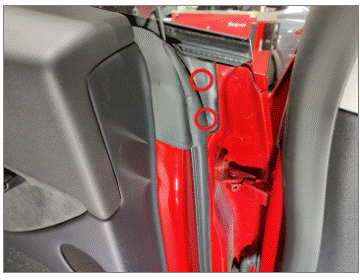

  2. Release the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.
    G00649761Courtesy of TESLA, INC.
    G00649762Courtesy of TESLA, INC.
    G00649763Courtesy of TESLA, INC.
    G00649764Courtesy of TESLA, INC.
  3. Use narrow-width tape to carefully mark the location of the secondary seal around the door.
    CAUTION: Make sure that the edge of the tape accurately follows the edge of the seal.

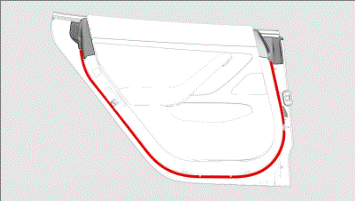

  4. Release the ends of the door secondary seal from the ends of the inner belt seal.
    G00649765Courtesy of TESLA, INC.

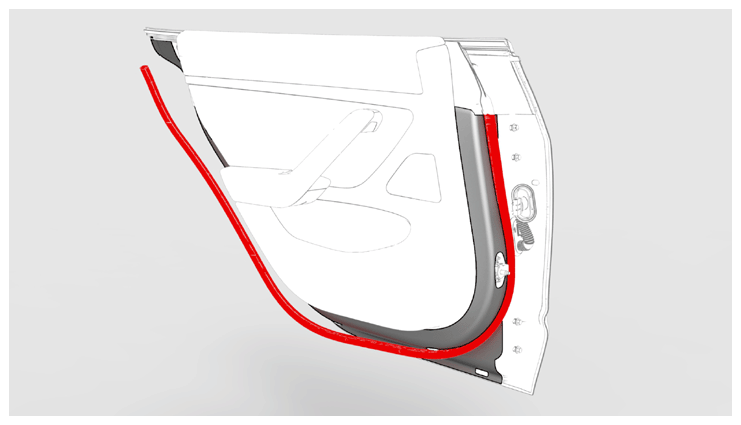

  5. Slowly peel the length of the secondary seal from the perimeter of the rear door.
    NOTE: Discard the seal as it can not be reused.
    G14739726Courtesy of TESLA, INC.

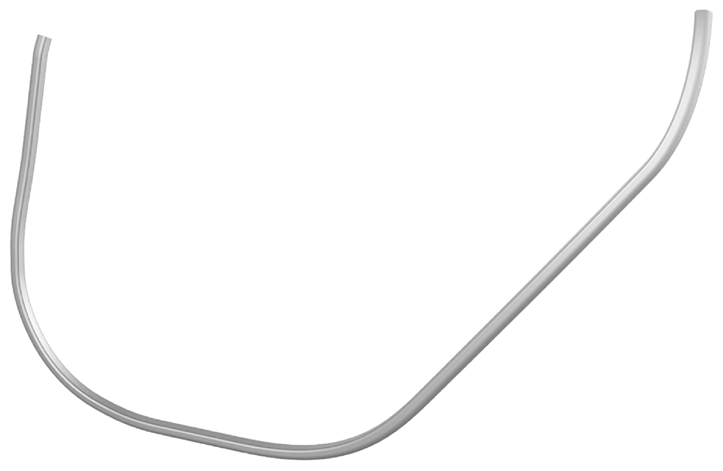

  6. Clean any remaining adhesive or residue from the rear door.
    G14739727Courtesy of TESLA, INC.
