Seal - Secondary - Front Door - LH - Remove and Replace: Remove

  1. Open the LH front door.
  2. Use narrow-width tape to carefully mark the location of the secondary seal around the door.
    CAUTION: Make sure that the edge of the tape accurately follows the edge of the seal.

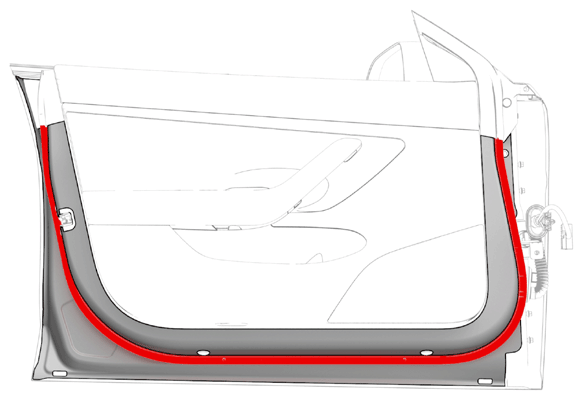

  3. Release the ends of the door secondary seal from the rear of the inner belt seal and the door glass run seal.
    G14739721Courtesy of TESLA, INC.

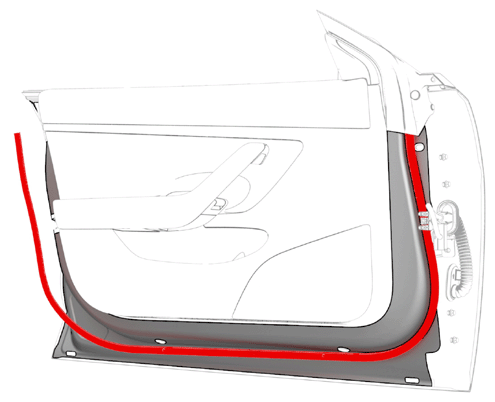

  4. Slowly peel the length of the secondary seal from the perimeter of the door.
    NOTE: Discard the seal as it can not be reused.
    G14739722Courtesy of TESLA, INC.

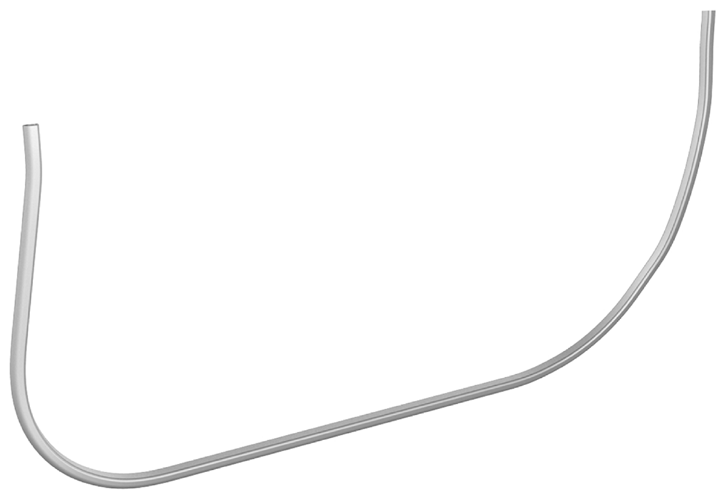

  5. Clean any remaining adhesive or residue from the door.
    G14739723Courtesy of TESLA, INC.
