Seal - Inner Belt - Rear Door - LH - Remove and Replace: Remove

  1. Remove the LH rear door trim panel. See PANEL - DOOR TRIM - REAR - LH (REMOVE AND INSTALL) .

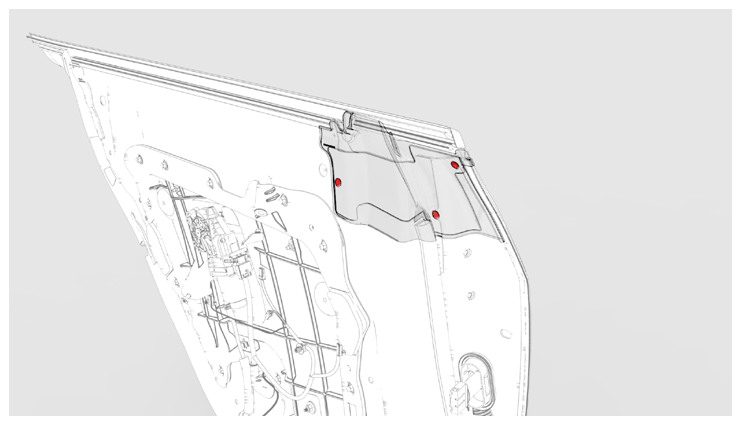

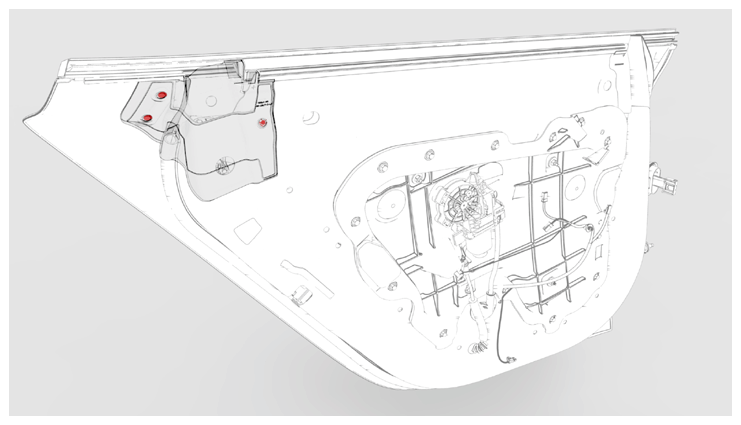

  2. Release the clips that attach the rear and front pieces of the inner belt seal to the rear door, and then remove the rear and front pieces of the inner belt seal.
    G14739700Courtesy of TESLA, INC.
    G14739701Courtesy of TESLA, INC.

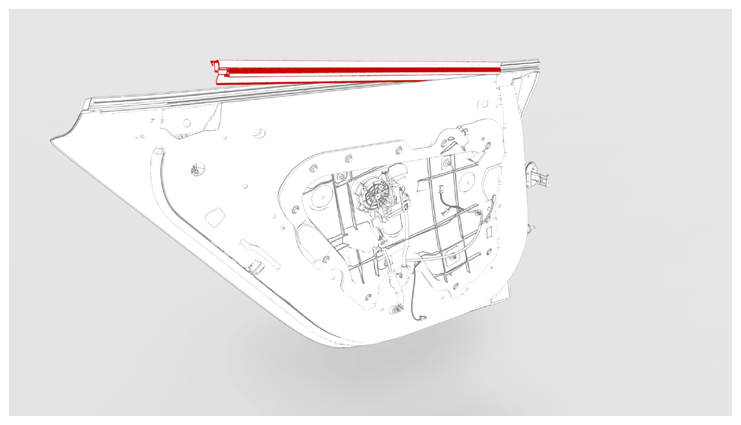

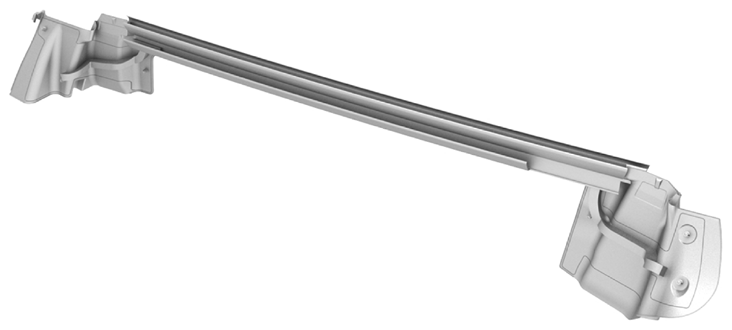

  3. Slowly peel the length of the strip piece of the seal from the rear door.
    G14739702Courtesy of TESLA, INC.
    G14739703Courtesy of TESLA, INC.
