Seal - Inner Belt - Front Door - LH - Remove and Replace: Remove

  1. Remove the LH front door trim panel. See PANEL - DOOR TRIM - FRONT - LH (REMOVE AND REPLACE) .
  2. Remove the rear of the inner belt seal from the door.
    NOTE: Remove the clips that remain in the door, and then install the clips into the rear of the inner belt seal.
    G14739696Courtesy of TESLA, INC.

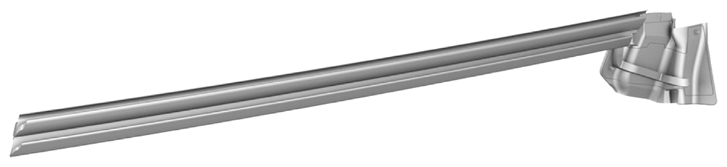

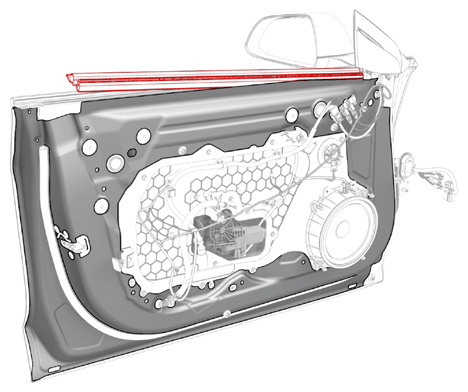

  3. Release the rest of the seal from the door, and then remove the seal from the door.
    G14739697Courtesy of TESLA, INC.
    G14739698Courtesy of TESLA, INC.
