Seal - Glass Run - Front Door - LH - Remove and Replace: Remove

  1. Remove the LH front door trim panel. See PANEL - DOOR TRIM - FRONT - LH (REMOVE AND INSTALL) .
  2. Remove the LH front door inner belt seal from the door. See SEAL - INNER BELT - FRONT DOOR - LH (REMOVE AND REPLACE) .
  3. Remove the LH door mirror assembly. See MIRROR - DOOR - LH - REMOVE AND REPLACE .

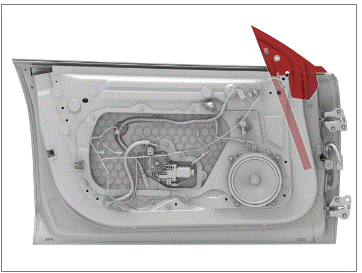

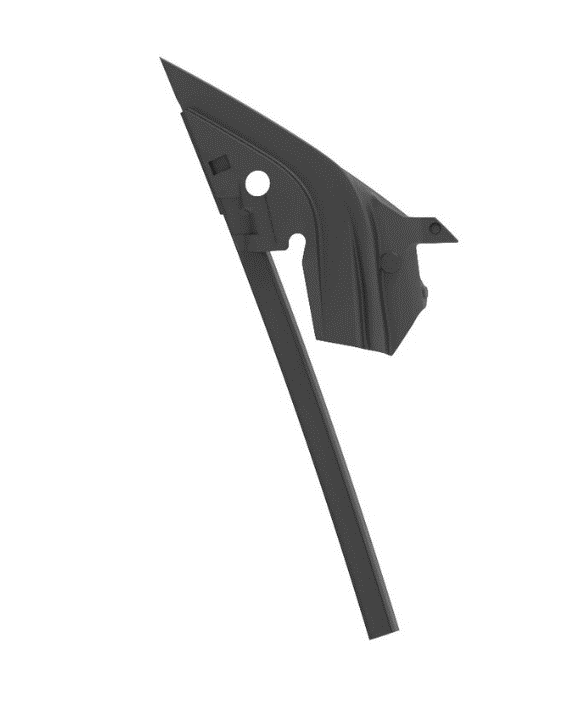

  4. Pull upwards to remove the LH front door glass run seal from the LH front door.
    G00649759Courtesy of TESLA, INC.
    G00649760Courtesy of TESLA, INC.
