Seal - Check Strap - Front Door - LH Remove and Replace: Remove

  1. Remove the LH front door check strap. See CHECK STRAP - DOOR - FRONT - LH - REMOVE AND REPLACE

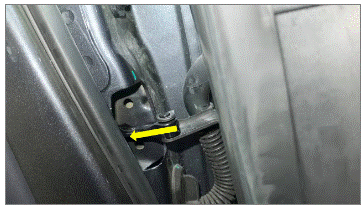

  2. Move the LH front door stop belt inward, then remove the LH front door check belt seal.
    G00649757Courtesy of TESLA, INC.
    G00649758Courtesy of TESLA, INC.
