Seal - Body - Side - Front - Primary - LH - Remove and Replace: Remove

  1. Remove the LH B-pillar applique. See APPLIQUE - B-PILLAR - LH (REMOVE AND REPLACE) .

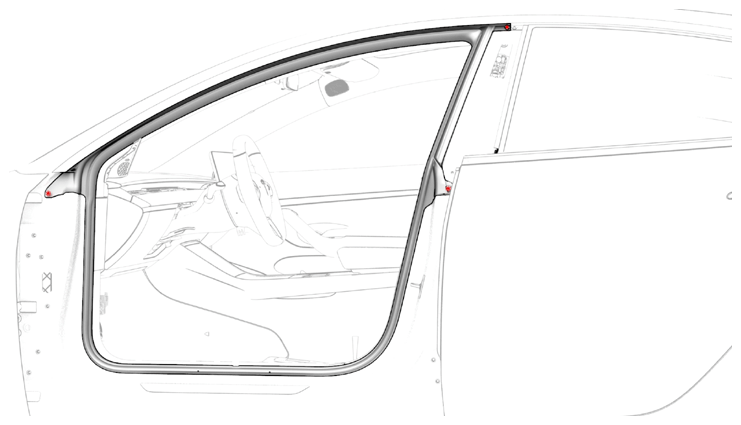

  2. Release the clips (x3) that attach the front LH primary body seal to the mid B-pillar, the upper B-pillar, and the mid A-pillar.
    G14739672Courtesy of TESLA, INC.

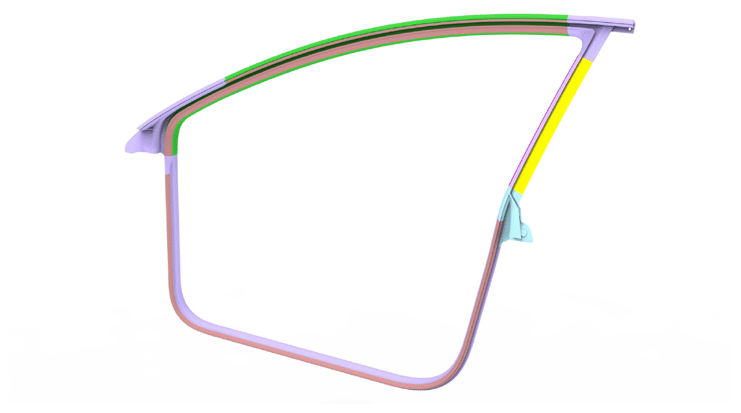

  3. Pull on the seal to remove it from the body.
    G14739673Courtesy of TESLA, INC.
