Switch - Power Trunk - Interior - Remove and Replace: Remove

  1. Remove the power trunk lid trim. See TRIM - LID - POWER TRUNK (REMOVE AND REPLACE) .

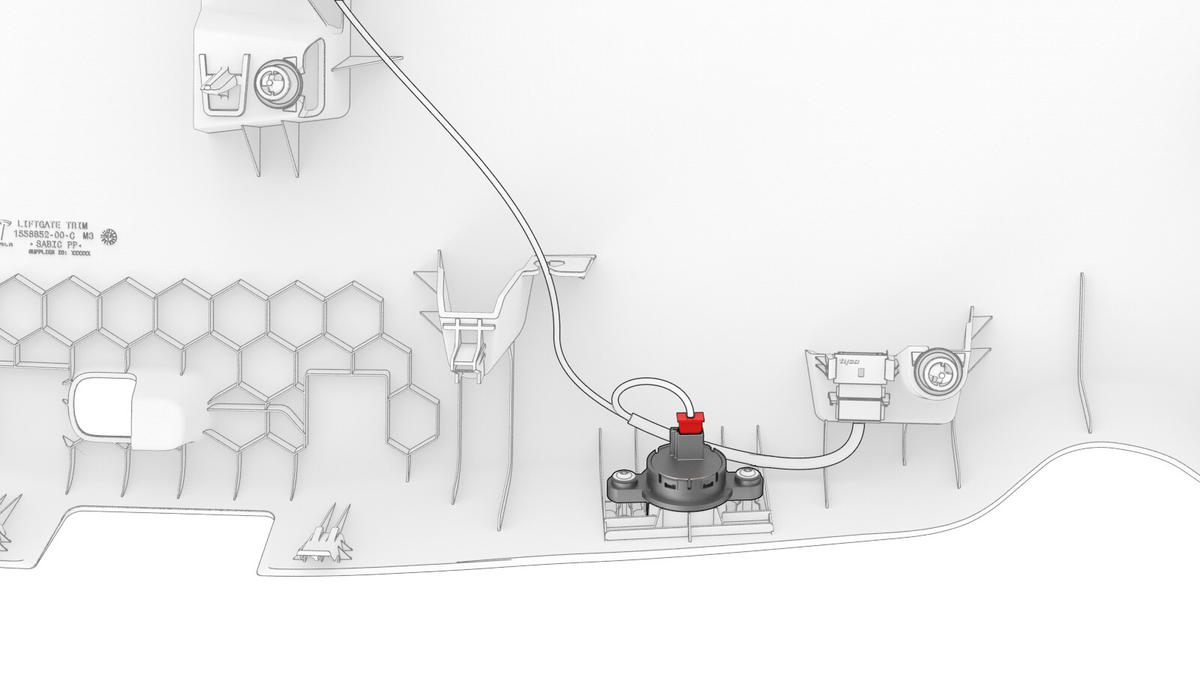

  2. Disconnect the electrical harness from the interior power trunk switch.
    G00622756Courtesy of TESLA, INC.

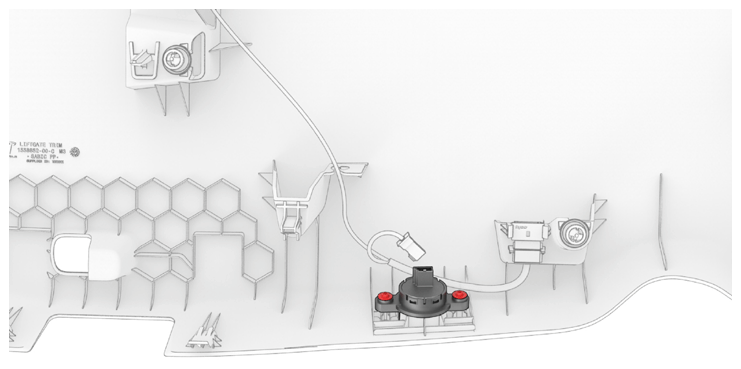

  3. Remove the screws that attach the interior power trunk switch to the power trunk lid trim, and then remove the switch from the trim.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • Ratchet/torque wrench
    G14739559Courtesy of TESLA, INC.
