Switch - Exterior Release - Trunk - Remove and Replace: Remove
- If necessary, remove the license plate and bracket. See BRACKET - LICENSE PLATE - REAR (EMEA) - REMOVE AND REPLACE
.
- Remove the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE)
.

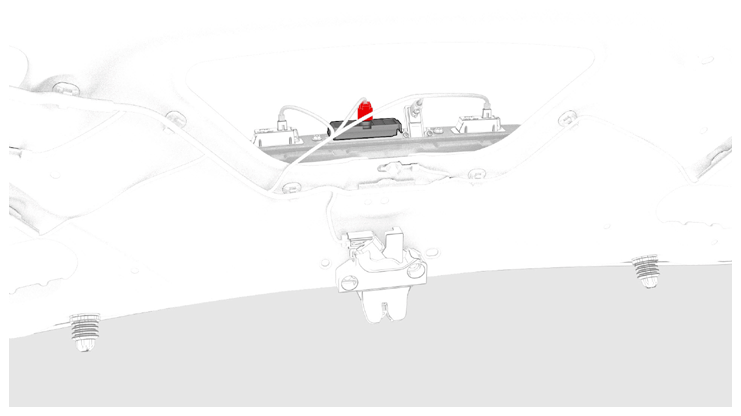

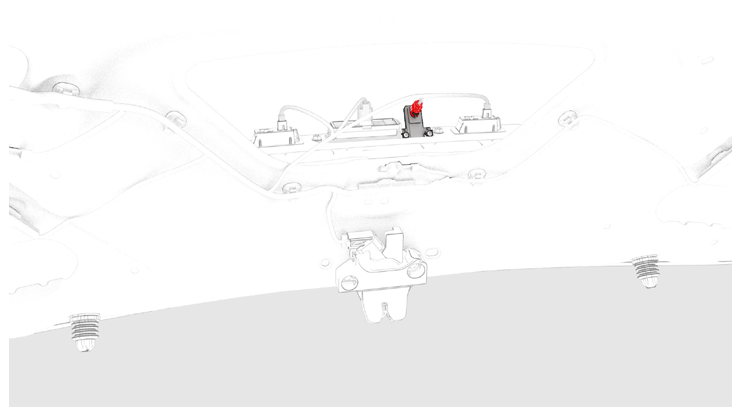

- Disconnect the electrical connectors from the trunk exterior release switch and the rear facing camera.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

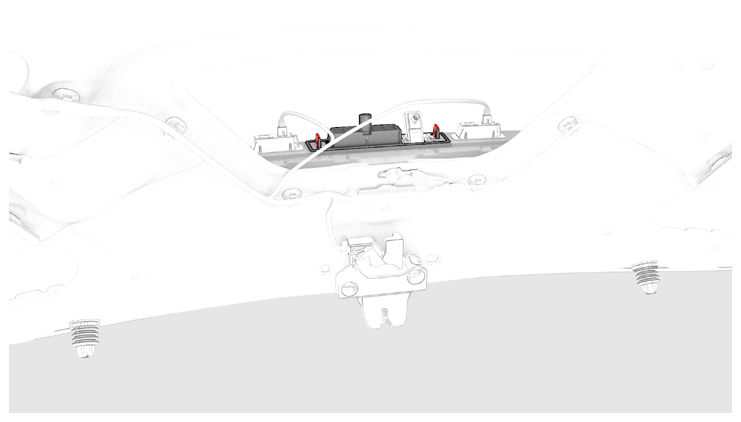

- Release the clips that attach the trunk exterior release switch to the liftgate.
 Courtesy of TESLA, INC.
|

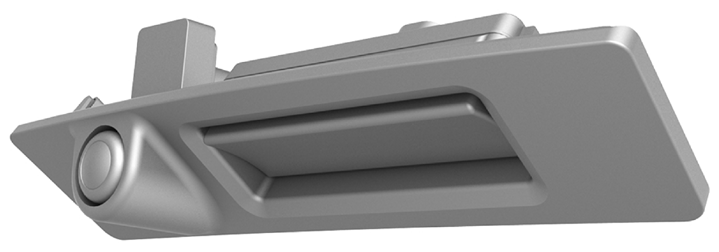

- Remove the switch from the vehicle.
 Courtesy of TESLA, INC.
|
