Striker - Trunk - Remove and Replace: Remove

  1. Remove the rear trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  2. Use masking tape to mark the location of the trunk striker.

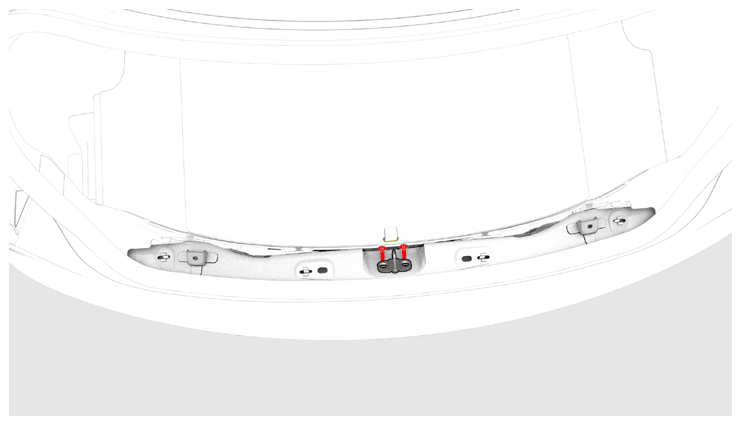

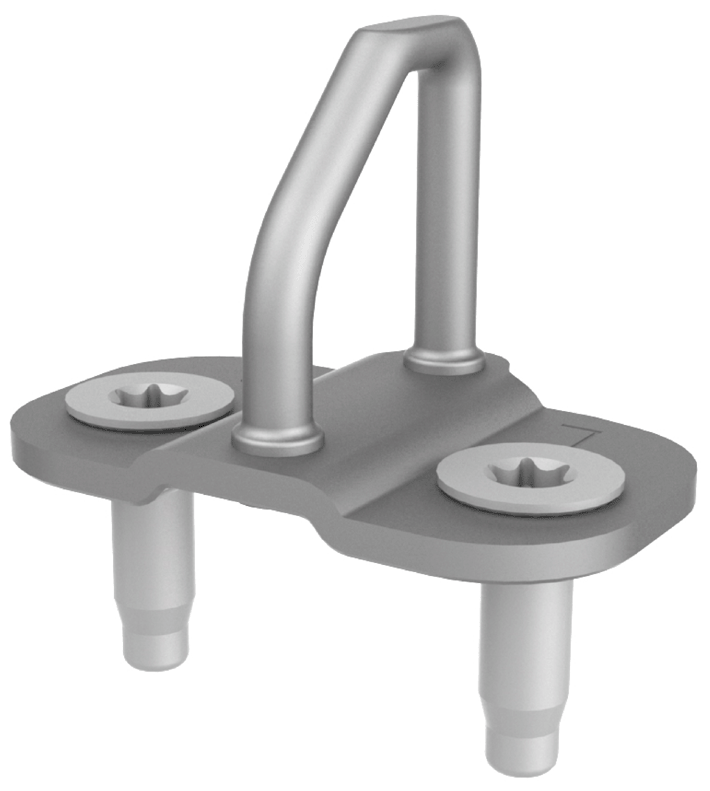

  3. Remove the bolts that attach the trunk striker to the body, and then remove the striker from the vehicle.
    G14739547Courtesy of TESLA, INC.
    G14739548Courtesy of TESLA, INC.
