Striker - Hood - Remove and Replace: Remove

  1. Open the hood.
  2. Use masking tape to mark the location of the hood striker on the hood assembly.

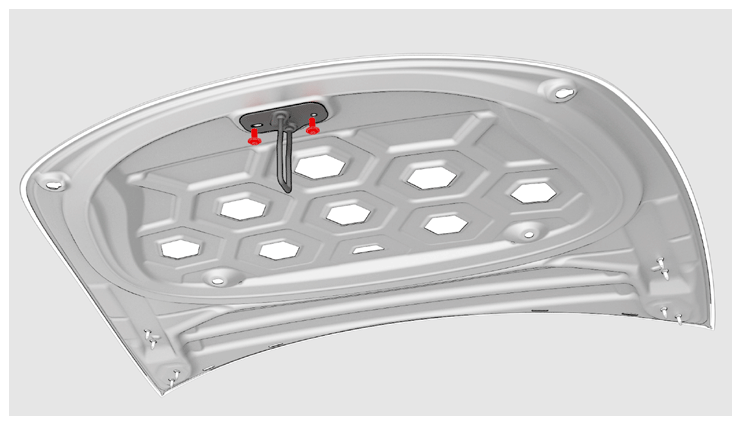

  3. Use a T40 socket to remove the bolts that attach the hood striker to the hood, and then remove the striker from the hood.
    G14739544Courtesy of TESLA, INC.
