Striker - Door - Rear - LH - Remove and Replace: Remove

  1. Open the LH rear door.
  2. Mark the position of the LH rear door striker using masking tape.
  3. Remove the bolts that attach the LH rear door striker to the body, and then remove the striker from the vehicle.

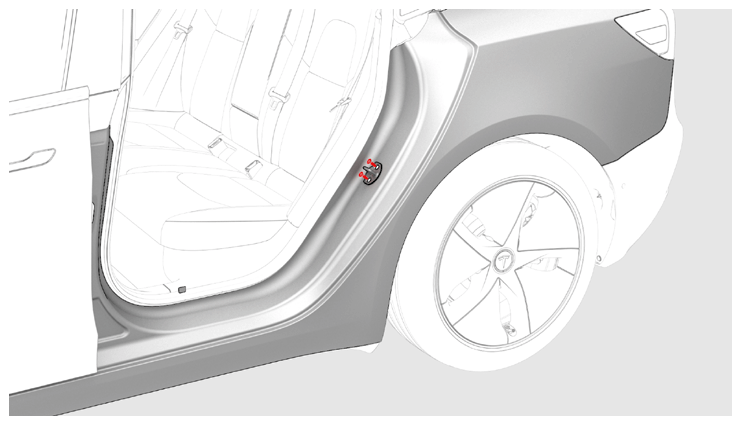

    G14739540Courtesy of TESLA, INC.

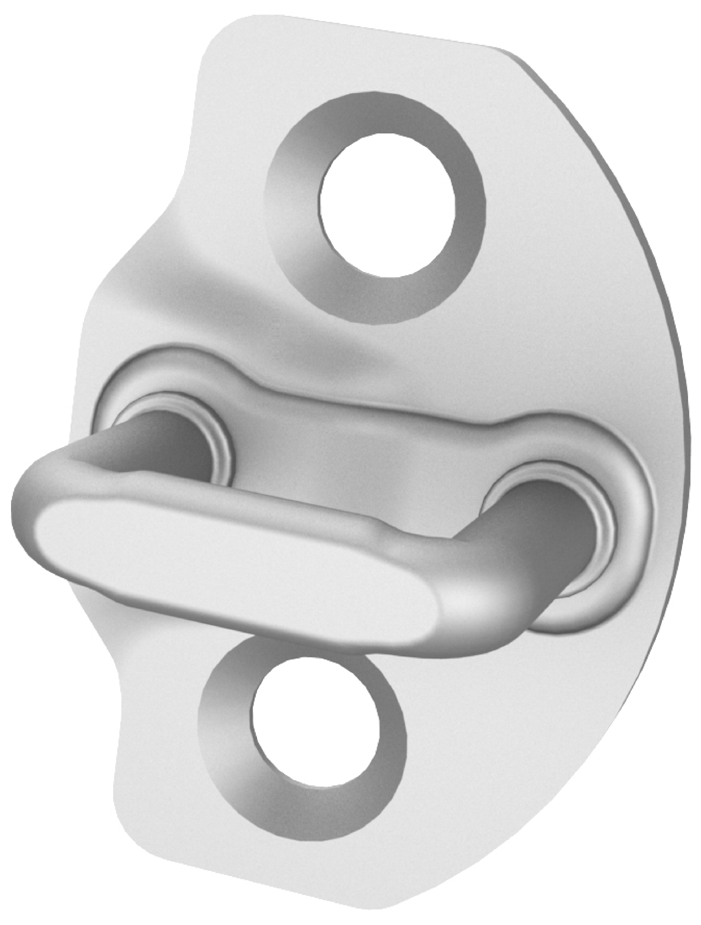

    G14739541Courtesy of TESLA, INC.
