Striker - Door - Front - LH - Remove and Replace: Remove

  1. Open the LH front door.

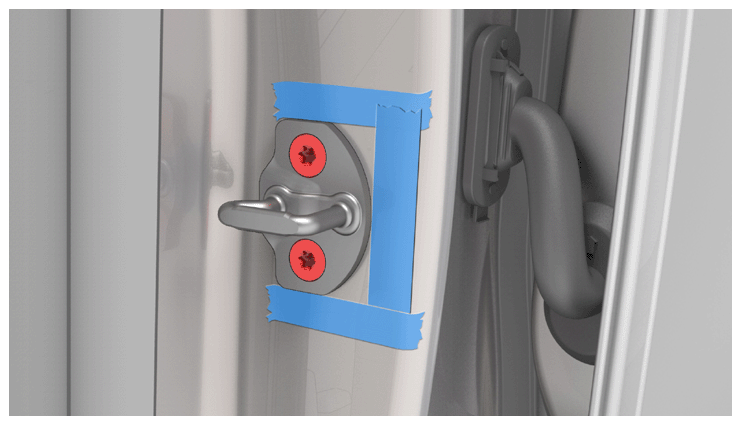

  2. Mark the position of the LH front door striker using masking tape.
  3. Remove the bolts that attach the LH front door striker to the body.
    NOTE: Use of the following tool(s) is recommended:
    • T45 socket
    G14739537Courtesy of TESLA, INC.
  4. Remove the LH front door striker from the vehicle.
