Striker - Door - Front - LH - Remove and Replace: Install

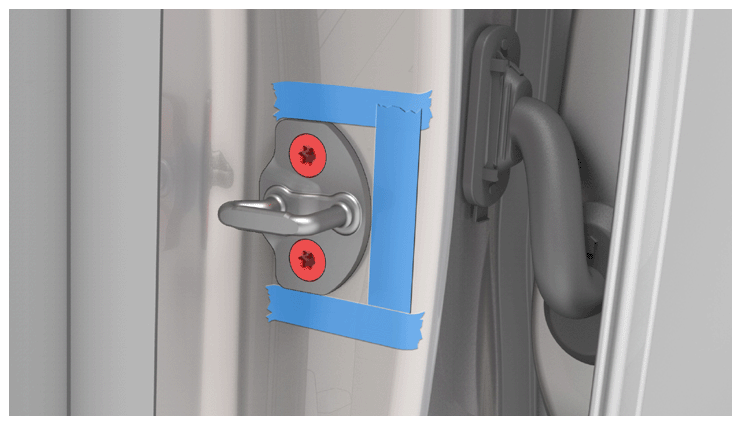

  1. Hand-tighten the bolts that attach the LH front door striker to the body.
    NOTE: Use of the following tool(s) is recommended:
    • T45 socket
    G14739538Courtesy of TESLA, INC.
  2. Close the LH front door and verify the door position; adjust the position of the striker and verify figment, if necessary.
  3. Tighten the bolts that attach the LH front door striker to the body.

    26 N.m (19.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • T45 socket
  4. Remove the masking tape from the body.
  5. Close the LH front door.
