Latch - Trunk - Remove and Replace: Remove

  1. Remove the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE) .
  2. Disconnect the electrical connector from the latch.
    G14739526Courtesy of TESLA, INC.

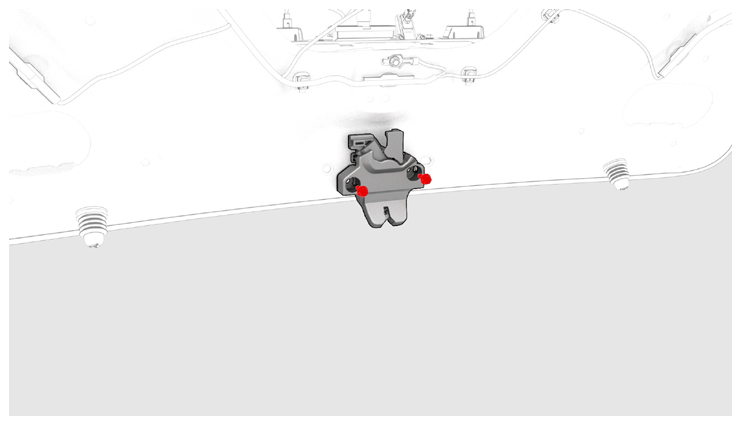

  3. Remove the bolts that attach the latch to the trunk lid, and then remove the latch from the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    G14739527Courtesy of TESLA, INC.
