Latch - Trunk - Remove and Replace: Install

  1. Position the latch and loosely install the bolts that attach the latch to the trunk lid.
    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    G14739528Courtesy of TESLA, INC.

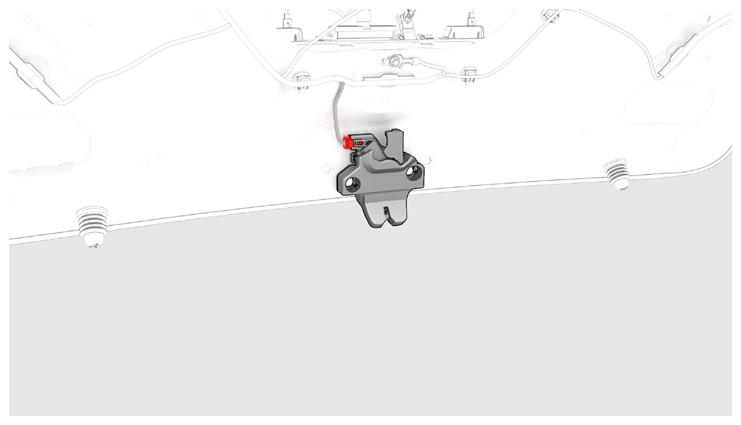

  2. Connect the electrical connector to the latch.
    G14739529Courtesy of TESLA, INC.
  3. Close the trunk to check gap/flush and, if necessary, perform adjustments.
  4. Open the trunk and torque the bolts that attach the latch to the trunk lid.

    8 N.m (5.9 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    G14739530Courtesy of TESLA, INC.
  5. Install the trunk lid trim. See TRIM - LID - TRUNK (REMOVE AND REPLACE) .
