Latch - Hood (Single Actuator System) - Remove and Replace: Remove

NOTE: If the hood latch does not open electronically, use the manual front trunk tool to open the hood. See https://serviceinnovation.teslamotors.com/tool-profiles-index/TP_1130534-00-A_TOOL,%20FRUNK%20RELEASE,%20MANUAL,%20MODEL%203.pdf.
  1. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .

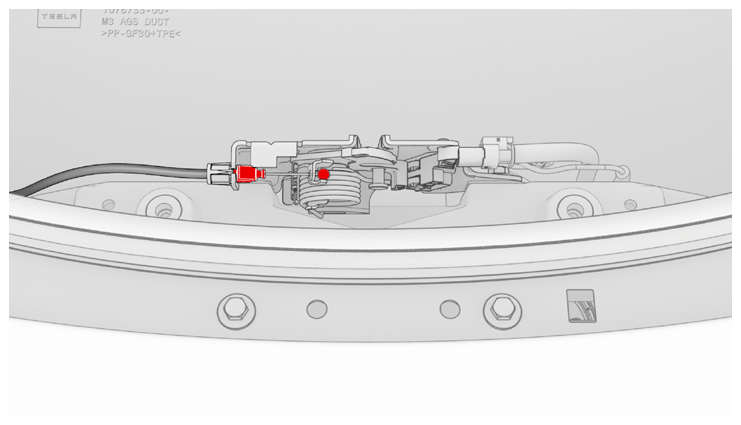

  2. Release the hood latch actuator cable from the hood latch.
    NOTE: Release the clip before removing the actuator cable from the latch arm.
    G14739522Courtesy of TESLA, INC.

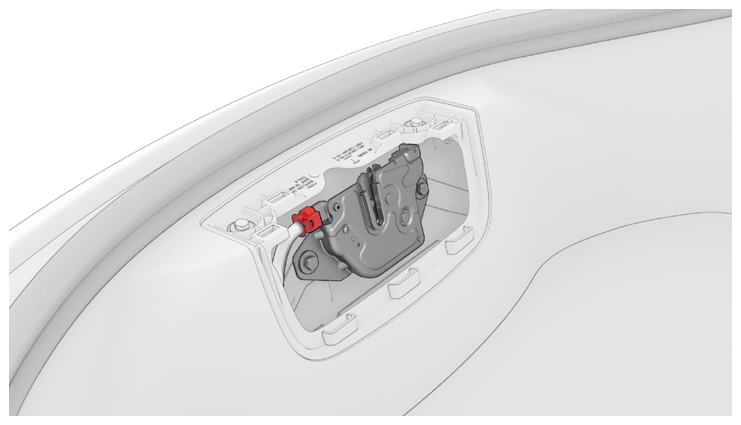

  3. Disconnect the electrical harness from the hood latch connector.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14739523Courtesy of TESLA, INC.
  4. Mark the location of the hood latch with a paint pen or masking tape.

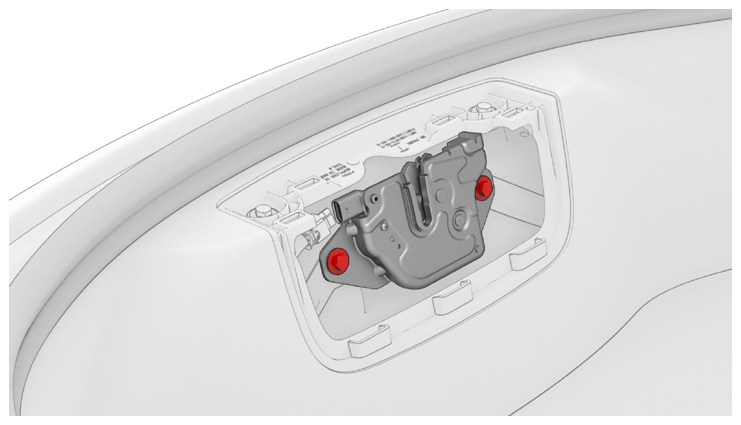

  5. Remove the bolts that attach the hood latch to the front end carrier, and then remove the latch from the vehicle.

    8 N.m (5.9 ft-lbs)

    Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    • Ratchet/torque wrench
    G14739524Courtesy of TESLA, INC.
